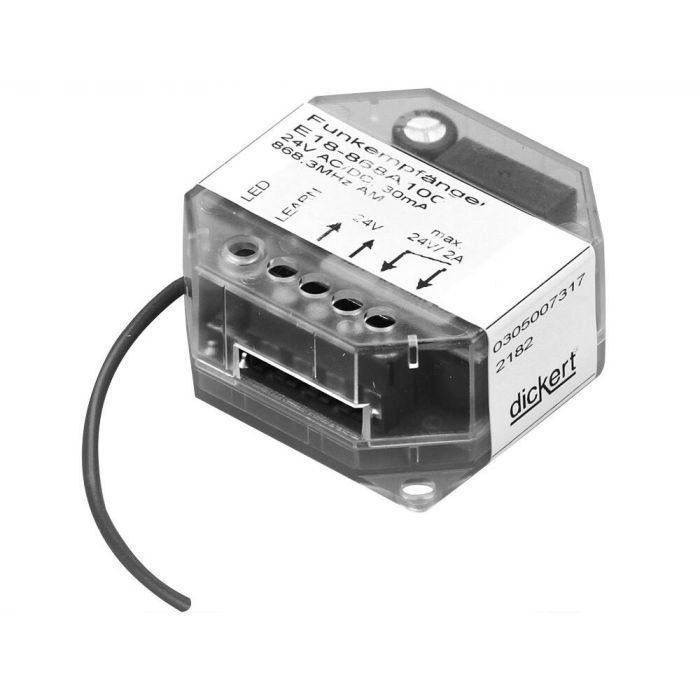

E18-868A100

The E18-868A100 works with 868.3MHz and AM modulation mode. The potential-free relay output gives the receiver great versatility. The radio receiver has several operating modes that can be selected. Due to its very compact design, the receiver is particularly suitable for locations with little space. The main area of application is the control of motor controls for gate systems. The receiver can also be used to control load relays or contactor coils, which results in numerous possible applications. In addition to the normal switch functions, it also has switch-off timer, e.g. for a staircase lighting control system.

An automatic switch-off time can be set for the output. The output can be switched off prematurely or the switch-off time can be restarted with an external pushbutton or by radio.

The receiver can basically teach-in different coding methods. However, the transmitter that is taught in first determines the system to which the receiver then "locks in". This system must then be maintained, e.g. Keeloq code cannot be mixed with linear code on one receiver.

• Operating voltage: 24V AC/DC
• Compatible to our transmitters with 868.3MHz
• Operating modes: Pulse, surge, targeted ON/OFF
• Memory: max. 13 codes (linear code with same switch position: unlimited)
• Switch-off timer, configurable from around 1 second to around 18 hours
• Relay output, max. 24V/2A closing contact, potential-free
