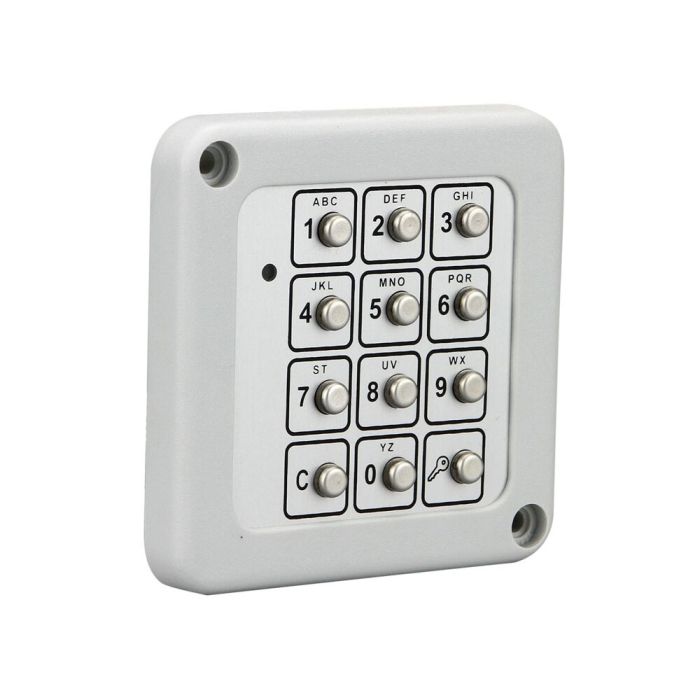

CSL30-00
Code lock metal | with 5m cable | water-protected housing IP67
Availability
Part number
02009200
The code locks can be used to implement an access restriction to sensitive areas. The code locks of the CSL30 series can be clamped to the matching basic controller without further evaluation unit. The individual codes here are managed in the basic controller (see operating instructions RTS20Q).
Attention: Combination locks are currently only compatible with the RTS20Q!
- water-protected housing, IP65 (CSL10), IP67 (CSL30)
- robust metal surface (CSL30)
- no battery necessary
- maintenance-free
- 5m cable included
- two-core cable
- easy mounting / installation
- simple teach-in to the basic controller (see RTS20Q)
| Dimensions | 80 x 80 x 10mm |
|---|---|
| Operat. temperature | -20°C to +50°C |
| Weight | 160g |
| Product type | Accessories |
