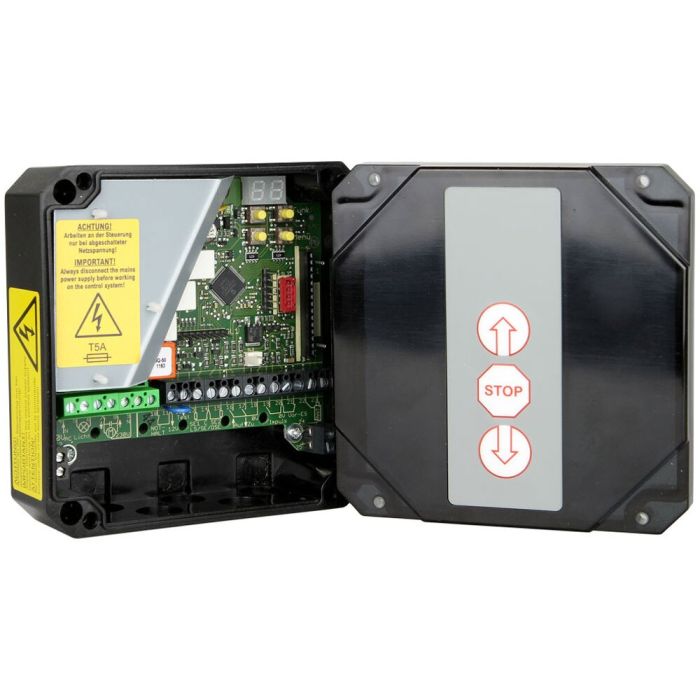

RTS20Q-20
Rolling shutter gate controller | 230V | without radio | front foil without LEDs | MO125 | TÜV type-tested
Availability
Part number
00004110
The RTS20Q is a motor controller for 230 V AC tubular motors with integrated limit switches. The controller can be used for rolling shutter gates, roller shutters, blinds etc. Operating other 230 V AC drives without limit switches is also possible using runtime cut-off.
EC type examination according to Directive 2006/42/EC (machinery)
- Standby consumption <0,5 Watt
- “QuickLearn” remote learning function
- QuickLog add-on card (optional), backing up settings / transmitter codes, memory expansion, log book
- Pulse, targeted "Open-Closed", dead man inching mode for slat adjustment
- Pre-limit switch
- Light / warning light output
- Light barrier connection
- Security strip evaluation 1K2, 8K2, OSE or switch strip
- Operation without limit switches possible, stop via runtime (hydraulic drives)
- Electronic end position detection
- Integrated radio receiver (optional), plug-in radio module in various frequencies
- Automatic closing
- Code lock, RFID transponder
- Without radio module
| Dimensions | 125 x 125 x 52mm |
|---|---|
| Connected load | 500VA |
| Wings | 1 wing |
| Output | 1M/light adjustable |
| Operating voltage | 230V AC |
| Operat. temperature | -20°C to +50°C |
| Power-on time | 25% |
| Weight | 0,5kg |
| Product type | Motor control |
| Protection class | IP54 |
| Standby | <0,5W |
