HFM40-51 40.685MHz FM
Radio module | 40.685MHz | FM | incl. wire antenna FZB02-00
Availability
Part number
03004303

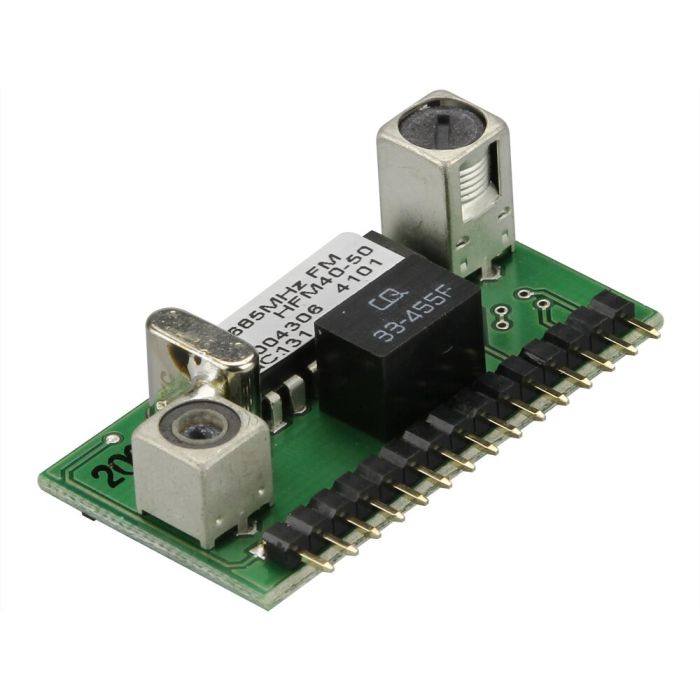

The HFM40-51 (HF-NF converter) radio module is used to receive serial data by radio. It operates with a carrier frequency of 40.685MHz in the FM modulation mode.
Radio modules are used in our motor controllers and radio reception equipment, but can also be used for wireless alarm systems, remote control units etc. Special versions can be delivered by arrangement. The modules are connected by inserting them into the motor controller's 15-pin contact strip.
- Includes wire antenna
| Dimensions | 41 x 22 x 13mm |
|---|---|
| Operating voltage | 3-9V DC |
| Frequency | 40,685MHz |
| Modulation mode | FM |
| Product type | Accessories |
