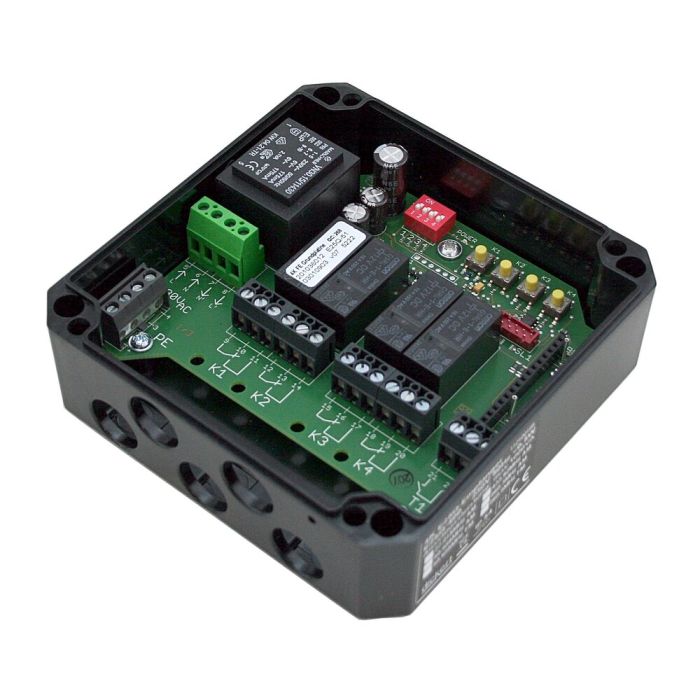

E25Q-400

The universally applicable E25Q-400 radio receiver will be supplied without radio module. The reception frequency and the modulation type are determined by the radio module matching the intended handheld transmitters. The radio module is necessary for the function of the receiver! The 4 potential-free powerful relays in the output provide great versatility. The receiver can, for example, be used for switching lighting, alarm systems, fountains, blinds, roller shutters etc. An automatic break-time can be automatically set for each output, which makes the receiver it ideally suited as a staircase lighting timer.

An automatic switch-off time can be set for each output. The outputs can be switched off prematurely or the switch-off time can be restarted with an external pushbutton or by radio. This function is particularly suitable for a staircase lighting with the possibility of "switching on".

The receiver can basically teach-in different coding methods. However, the transmitter taught in first determines the system to which the receiver then "locks in". This system must then be maintained, e.g. Keeloq code cannot be mixed with linear code on a receiver.

The “QuickLog25” add-on card can be used to back up the taught-in transmitter codes or to extend the E25Q into a blind / roller shutter control system.
