HQAM433P-57 433.92MHz AM
Radio module | 433.92MHz | AM | narrowband 15p SL | single package | incl. wire antenna
Availability
Part number
03006807

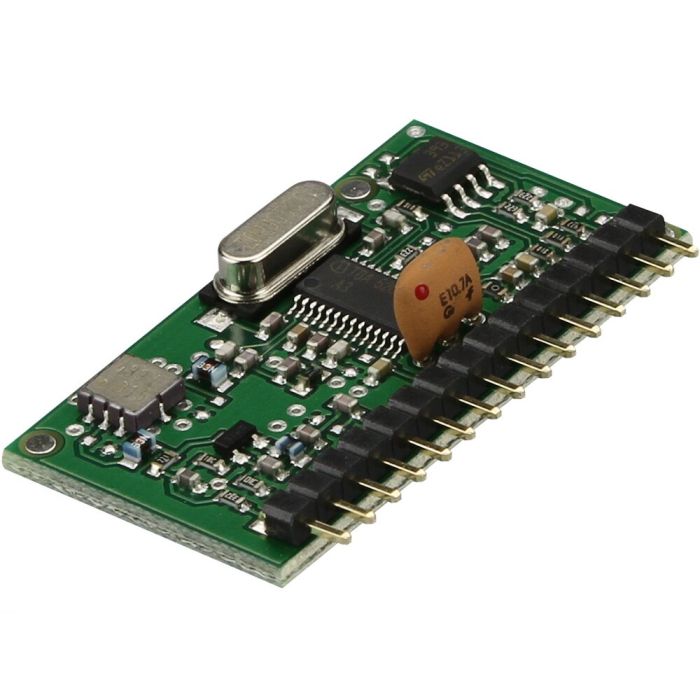

Radio modules are also known as "HF modules", for receiving / transmitting serial data. It is used to receive serial data by radio in the frequency of 433.92MHz in the modulation mode AM.
The module can be used in our motor controllers and radio receivers for operation via handheld transmitter. The modules are connected by inserting them into the motor controller's 15-pin contact strip.
- Includes wire antenna
| Dimensions | 41 x 22 x 10mm |
|---|---|
| Operating voltage | 4-5,5V DC |
| Frequency | 433,92MHz |
| Modulation mode | AM |
| Product type | Accessories |
