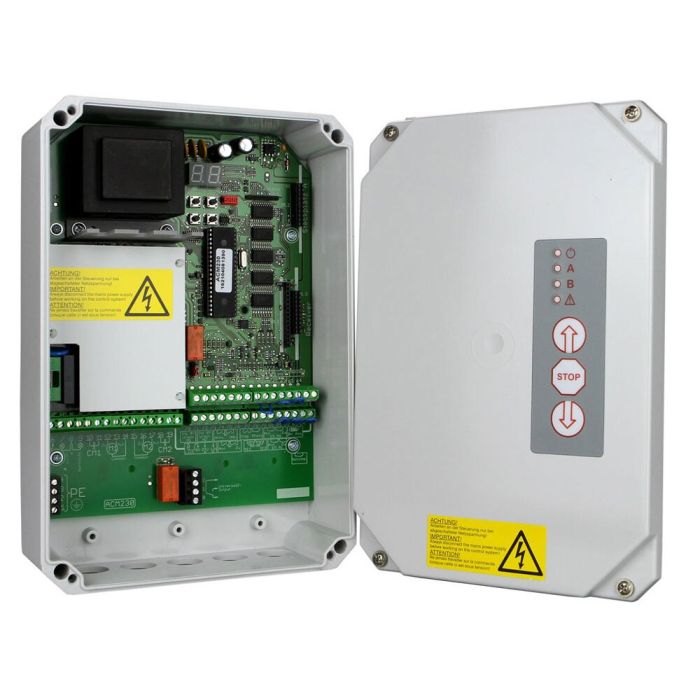

ACM230-01

The ACM230-01 (with membrane keyboard) is a 230 V AC motor controller for max. 2 motors, which is equipped with 'SecuSense®' obstacle detection and a soft run function. Both a radio module and a 'complete receiver' can be used for radio operation. The controller can be used for swing and sliding gates as well as for rolling shutter gates, barriers etc. The end position voltage can be applied via external limit switches, time control or by force cut-off.

• 34 programmable menus
• Membrane keyboard (optional)
• 'SecuSense®' obstacle detection
• Light barrier input
• 8K2 + OSE security strip evaluation
• Soft start-up and soft stop at 1/3 of the normal speed
• Inactive leaf input for motor 1
• Operation without limit switch possible
• Red/green traffic light as status display
• Traffic light control for MMZ442 one-way street plug-in card required
• Potential-free universal output, e.g. for
• E-lock, light barrier test, end position display etc.
• Without radio control

The control unit is intended for replacement purposes only.
