MMZ442-50

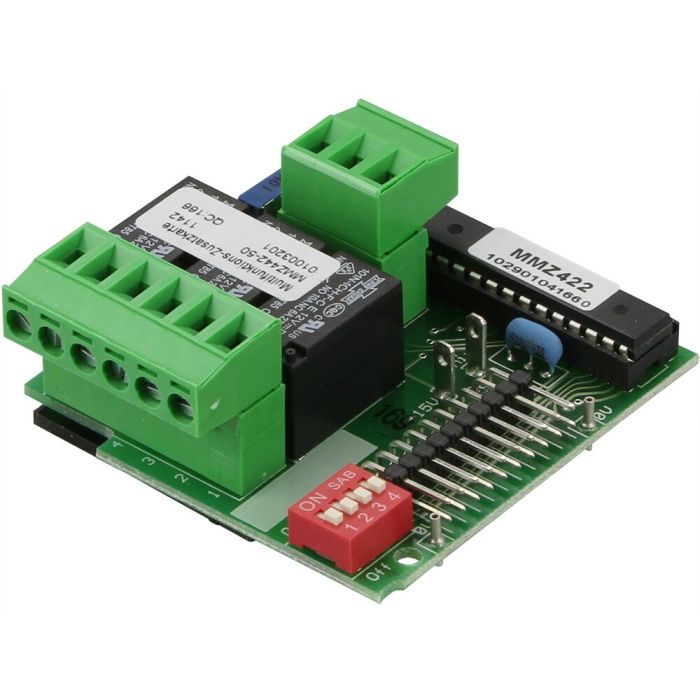

Multi-Function Card for motor controller
Availability
Part number
01003201
The multi-funktion card is compatible to the motor controllers ACM230/ACM400S. It enables the following special functions:
- Motor operation display
- Traffic light control for one-way streets
- End position display
- Fault remote display
- Test mode
- Data carrier function - data readout - evaluation by Dickert service
The possible special functions depend on the motor controller.
| Dimensions | 59 x 61 x 26mm |
|---|---|
| Connected load | 500W |
| Output | potential free relay |
| Operating voltage | 12V DC |
| Operat. temperature | -20°C to +50°C |
| Weight | 55g |
| Product type | Accessories |
