ACM400S-01
Motor controller 400V AC | 1-winged | 2,000W | box with keypad
Availability
Part number
00002501

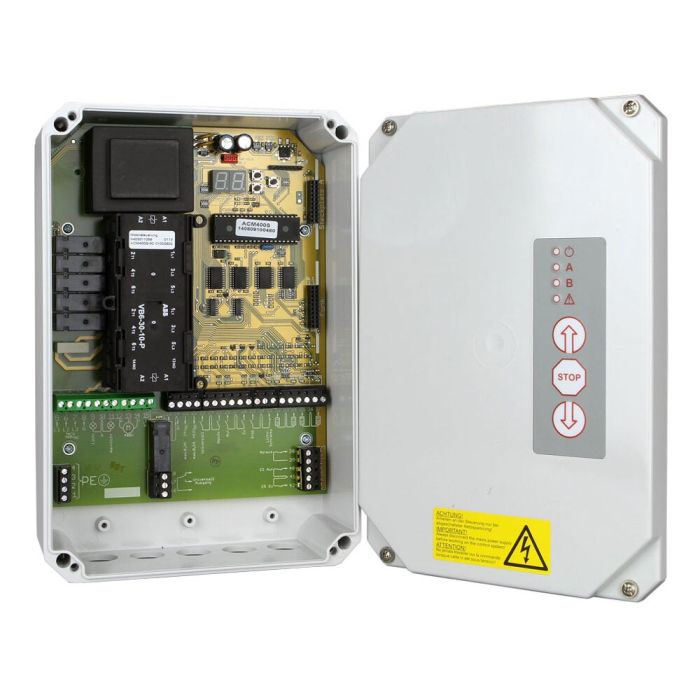

The ACM400S-01 (with membrane keyboard) is a 400 V/AC reversing contactor motor controller for one motor. Also an operation at 230 V AC is possible given a corresponding connection with one phase. Both a radio module and a 'complete receiver' can be used for radio operation. The controller can be used for swing and sliding gates, as well as for rolling shutter gates, barriers etc.
- 18 programmable menus
- Motor operation monitoring via RPM sensor possible
- “8K2” or Fraba OSE security strip evaluation (4 inputs)
- Light barrier input for DW strips, ground loop sensors etc.
- Pulse/open, stop, close inputs
- Limit switch inputs (NC)
- Red/green traffic light as status display, MMZ442-50 plug-in card required
- Traffic light control for MMZ442-50 one-way street plug-in card required
- Without radio control
The control unit is intended for replacement purposes only.
| Dimensions | 255mm x 176mm x 80mm |
|---|---|
| Connected load | 2000W |
| Wings | 1 wing |
| Output | 1M /light/warning light |
| Operating voltage | 400V AC |
| Operat. temperature | -20°C to +50°C |
| Power-on time | 25% |
| Weight | 1,7kg |
| Product type | Motor control |
| Protection class | IP54 |
| Standby | <8VA |
