E16-868A100
Radio receiver | 1 channel | 868.3MHz | AM | 20p. SL
Availability
Part number
03006318

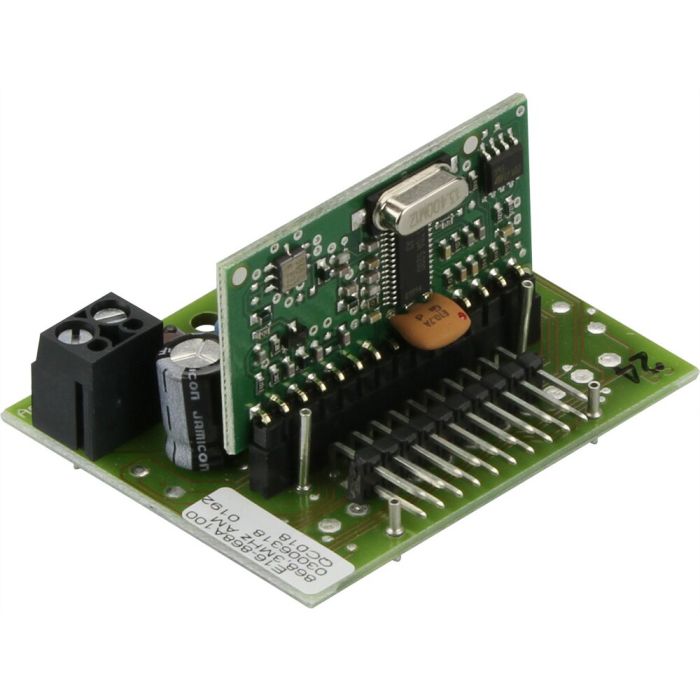

The E16 series provides great versatility due to a wide operating voltage range and 'open collector' output. The receiver is designed as a circuit board without housing in a 1-channel design. The connection is made as a plug-in connection via the 20-pin socket strip of the basic control.
The typical application is the use in our motor controls for radio control via handheld transmitter.
Operating modes: Pulse: The output switches as long as the transmitter key is actuated.
- Frequency conversion through replaceable radio modules
- Compatible with our 868.3MHz transmitters
- Reception control via LED
Warning to E16-.. receiver - October 29, 2014
The receiver E16- ... as a successor to the Type 58 receivers (AFE5821-.. = 27.015MHz and AFE5831-.. = 40.685MHz) is provided.
Do not use the E16-.. series in the following motor controls
- series 58 / 5801 / 5802 / 5806 ; - MAC A3 / MAC A4 ; - LTA5 / LTA 6 ; - 7450-..
An electrical shock risk for the installer and destruction danger to the motor controls exists! Please inform your customers about this!
For replacement purposes, we recommend using external 230V Receiver.
| Dimensions | 57 x 45 x 33mm |
|---|---|
| Connected load | 0,1A |
| Channels | 1 channel |
| Output | open collector, NPN |
| Operating voltage | 8-18V DC |
| Operat. temperature | -20°C to +70°C |
| Coding | self-learning |
| Frequency | 868,3MHz |
| Weight | 600g |
| Channels | 1 |
| Modulation mode | AM |
| Product type | Radio receiver |
