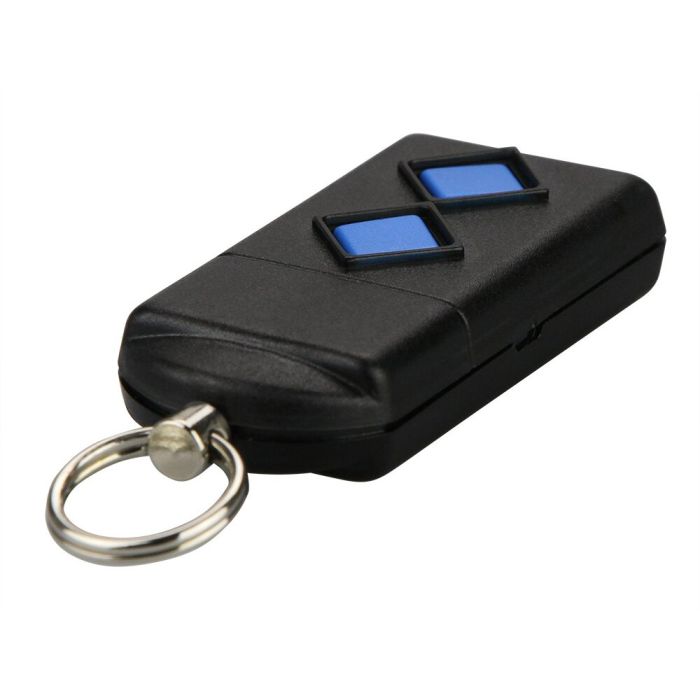

S5Q-868A2K00
Micro handheld transmitter | 2-channel | 868.3MHz | AM | KeeLoq | key colour: blue
Availability
Part number
02009620
The S5Q-868A2K00 has 2 send buttons and works with 868.3MHz and AM modulation mode. Each time it is actuated, a new code is calculated.
The transmitter must be taught-in once electronically on the radio receiver (each button to have effect).
- Compatible with our 868.3MHz AM radio receivers
- 2 send buttons
- KeeLoq coding (Dickert manufacturer code)
- QuickLearn - simplified remote learning function
- Micro design with key ring
- Blue LED for battery and transmission control
- Exempt from registration and from charges! Approval according to ETS 300220
| Dimensions | 50 x 24 x 12mm |
|---|---|
| Channels | 2 channel |
| Operat. temperature | -20°C to +60°C |
| Coding | KeeLoq |
| Frequency | 868,3MHz |
| Weight | 12g |
| Channels | 2 |
| Modulation mode | AM |
| Product type | Handheld transmitter |
| Operating range | up to 50m |
