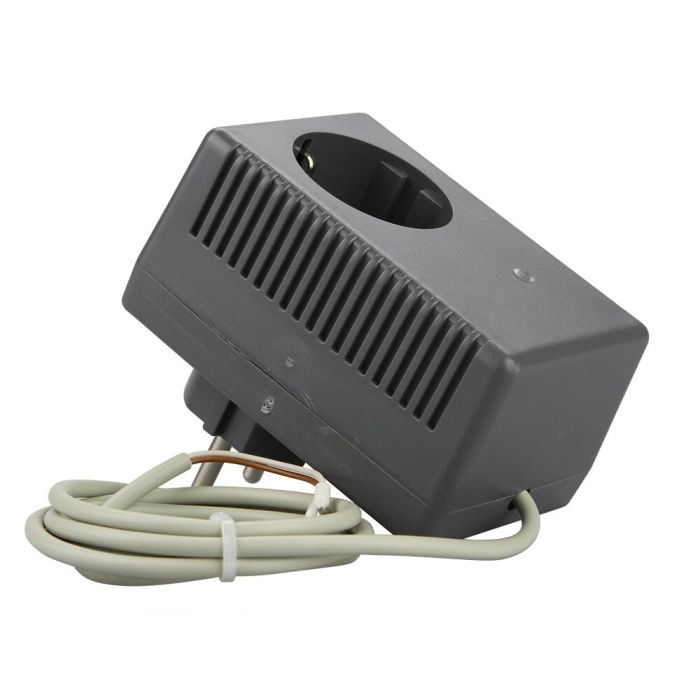

E20-868A1R10

Your door operator is still without radio operation or spare parts for the existing radio are no longer available? We have a good solution for you!

Retrofit your garage door opener for operation by radio using simple means - the E20 socket receiver makes it possible. Simply plug the receiver into the existing socket, plug the garage door drive into the E20, connect the relay output to the pulse input of the door drive (e.g. parallel to the wall button), teach in the transmitter - and go!

The receiver can basically teach-in different coding methods. However, the transmitter taught in first determines the system to which the receiver then "locks in". This system must then be maintained, e.g. KeeLoq code cannot be mixed with linear code on a receiver.

• 1-channel socket receiver in 868.3MHz
• Memory: max. 13 codes (linear code with same switch position: unlimited)
• potential-free relay output, 2-core stranded wire 1.25m with ferrules
• Door drives with radio for upgrading
• Simplest installation and programming
• Integrated socket for the garage door drive (SchuKo socket looped through)
