ISN-868A1000
Industrial handheld transmitter | 1.000-channel | 868.3MHz | AM | KeeLoq/linear-code | incl. alu holder
Availability
Part number
02010300

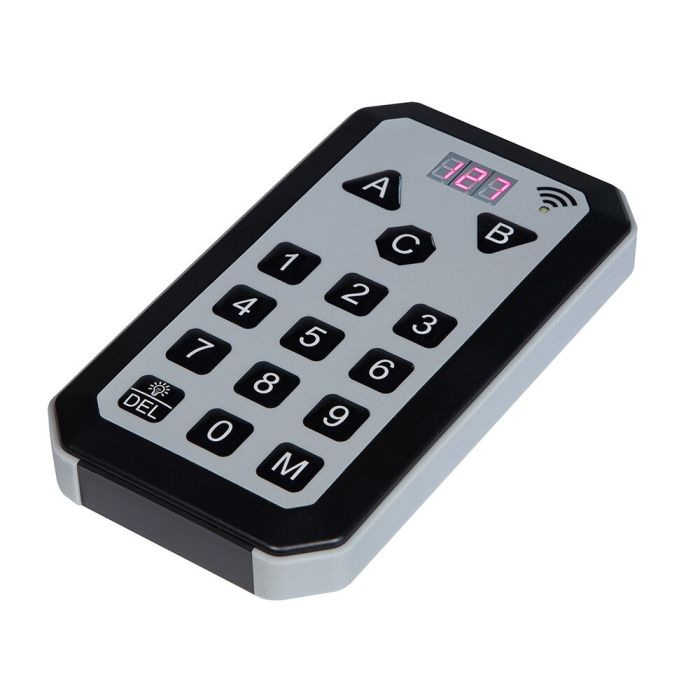

The ISN-868A1000 industrial handheld transmitter has three transmit keys, a 10-digit keypad and two function keys. It works with an operating frequency of 868.3MHz in the AM modulation mode. It offers you the possibility to operate up to 1,000 gates with the functions "OPEN-STOP-CLOSE" or up to 3,000 gates / receivers by pulse operation. Alternatively, the operating mode can be changed to 15-direct keys. Each of the 15 buttons then transmits an individual code (15-channel handheld transmitter). Switching between Linear and KeeLoq can also be done by key combination. The enclosed bracket allows secure mounting on the wall or on the forklift.
- Robust industrial transmitter compatible with all Dickert 868.3MHz AM radio receivers
- 2 operating modes: multi-channel or 15-direct key handheld transmitter
- KeeLoq or LinearCode can be selected via a coding switch
- Display of the transmission number
- LED transmit control
- Favorites / quick selection button
- incl. aluminum holder
- Operating voltage: 4 AA batteries
- Exempt from registration and from charges!
| Dimensions | 171 x 95 x 25mm |
|---|---|
| Channels | More than 4 |
| Operat. temperature | -20°C to +60°C |
| Coding | selectable |
| Frequency | 868,3MHz |
| Weight | 450g |
| Channels | more than 4 |
| Modulation mode | AM |
| Product type | Handheld transmitter |
| Operating range | up to 100m |
| Protection class | IP65 |
