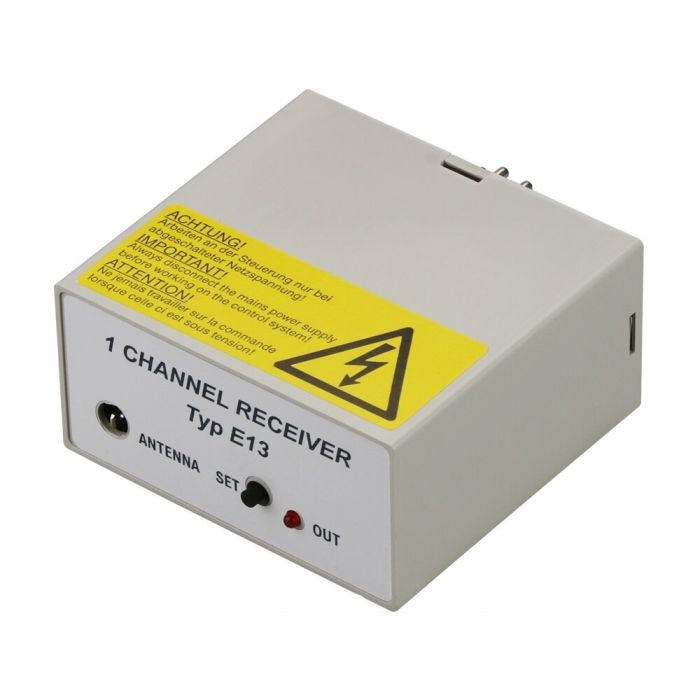

E13-868A100
Radio receiver | 1-channel | 868.3MHz | AM | 230V AC | 11p. socket | 1 relay output, potential-free | no rod antenna connectable
Availability
Part number
02005908
The E13-868A100 radio receiver works with the freqency of 868.3MHz in AM technology. With the compact design and the potential-free relay output, it offers versatile application possibilities. The housing can be integrated into a distribution with the FZB07 socket.
Pulse function: The output switches as long as the transmitter key is actuated.
- 60 transmitter keys can be taught in
- compatible to our handheld transmitters with 868.3MHz AM technology
- Reception control via LED
- Relay output
- Operating mode: pulse function
The control unit is intended for replacement purposes only.
| Dimensions | 75 x 38 x 70mm |
|---|---|
| Connected load | 500VA |
| Channels | 1 channel |
| Output | potential free relay |
| Operating voltage | 230V AC |
| Operat. temperature | -20°C to +50°C |
| Coding | self-learning |
| Frequency | 868,3MHz |
| Weight | 200g |
| Channels | 1 |
| Modulation mode | AM |
| Product type | Radio receiver |
| Protection class | IP20 |
