S20-868A4000
Multi-channel handheld transmitter | 40-channel | 868.3MHz | AM | linear-code | key colour: red
Availability
Part number
02007005

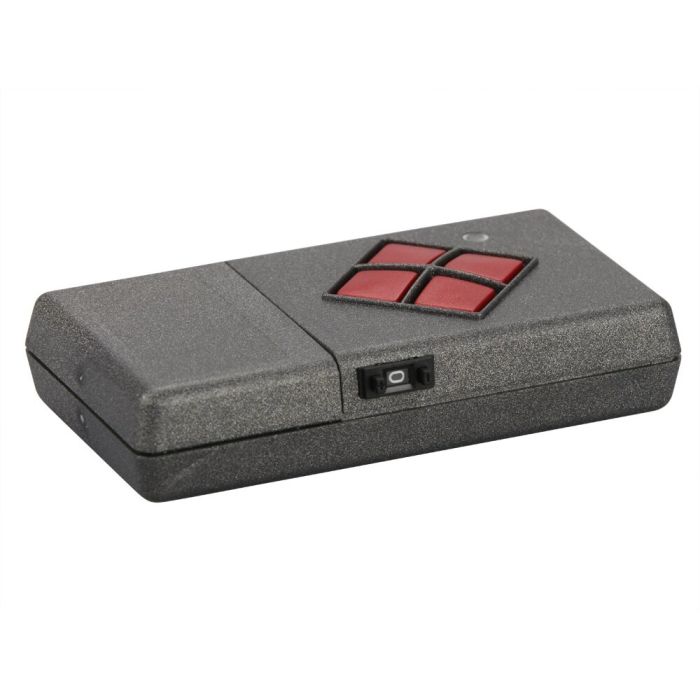

The S20-868A4000 has 4 send buttons and a switch with 10 positions on the side to control 40 channels (4x10). It works with 868.3MHz and AM modulation mode. The 10pin coding switch enables you to set 1,024 different security codes. For example, you can make subsequent transmitters a duplicate of the original transmitter by setting the same code. The receiver then requires no further memory space, so the number of transmitters is virtually unlimited. Equally, you can also set the same code for several transmitters in order to control the same receiver with all the transmitters.
- Compatible with our 868.3MHz AM radio receivers
- 40 channels: 4 send buttons + 10x BCD-switch
- 18Bit-Dickert-Linearcode
- Blue LED for battery and transmission control
- Exempt from registration and from charges! Approval according to ETS 300220!
| Dimensions | 110 x 60 x 26mm |
|---|---|
| Channels | More than 4 |
| Operat. temperature | -20°C to +60°C |
| Coding | linear |
| Frequency | 868,3MHz |
| Weight | 130g |
| Channels | more than 4 |
| Modulation mode | AM |
| Product type | Handheld transmitter |
| Operating range | up to 100m |
