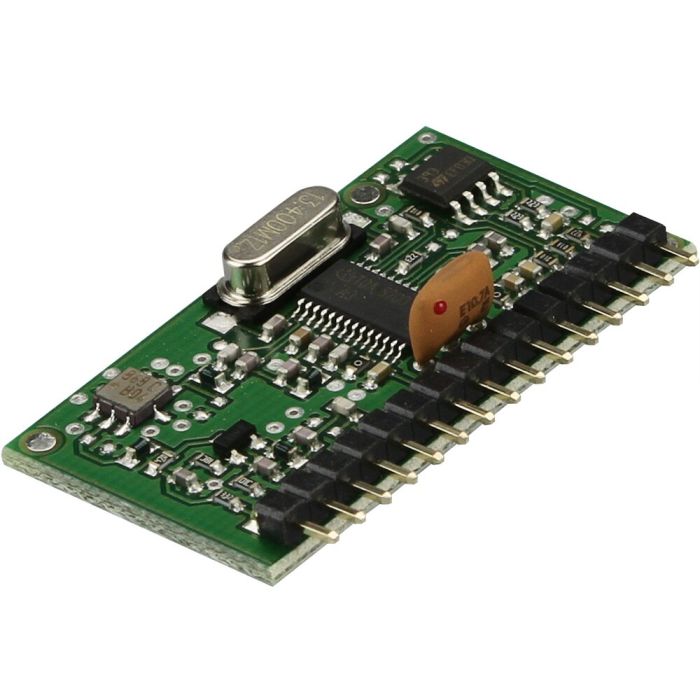

HQAM868-57 868.3MHz AM
Radio module | 868.3MHz | AM | incl. wire antenna
Availability
Part number
03006707
Radio modules are also known as "HF modules", for receiving / transmitting serial data. It is used to receive serial data by radio in the frequency of 868.3MHz in the modulation mode AM.
The module can be used in our motor controllers and radio receivers for operation via handheld transmitter. The modules are connected by inserting them into the motor controller's 15-pin contact strip.
- Includes wire antenna
| Dimensions | 41 x 22 x 10mm |
|---|---|
| Operating voltage | 4-5,5V DC |
| Frequency | 868,3MHz |
| Modulation mode | AM |
| Product type | Accessories |
