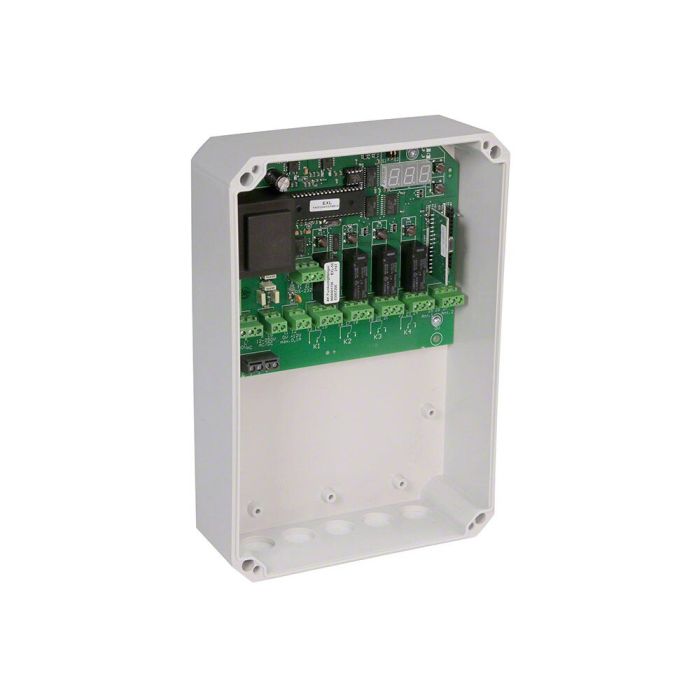

EXL-868A400
Radio receiver | for up to 1.000 transmitters | 868.3MHz AM | 4 potential-free relay outputs
Availability
Part number
02006504
The EXL-868A400 is used whenever a large number of transmitters are required. 1,000 transmitter keys can be taught in. This makes the EXL ideal for large-scale projects like multi-storey car parks. The 4 potential-free heavy-duty relays in the output provide great versatility. An automatic break-time, which can be switched off prematurely or re-started, can be automatically set for each output. Users (senders) can be “blocked” individually (e.g. loss of the transmitter) or even “deleted”.
- 4 relay outputs, potential-free
- “ Auto-Off” configurable 1s...17min.
- Input for “external” button
- Possible to delete individual transmitters
- Possible to block individual transmitters
- Transmitter “available / blocked” display
- Available memory selection, display via 7-segment display
- Operation, data backup, and status logging possible via “RS232” interface
- Operating modes:* Pulse, surge, targeted ON/OFF
| Dimensions | 255 x 176 x 80mm |
|---|---|
| Connected load | 4A |
| Channels | 4 channel |
| Output | potential free relay |
| Operating voltage | 230V AC |
| Operat. temperature | -20°C to +50°C |
| Coding | self-learning |
| Frequency | 868,3MHz |
| Weight | 1kg |
| Channels | 4 |
| Modulation mode | AM |
| Product type | Radio receiver |
| Protection class | IP54 |
