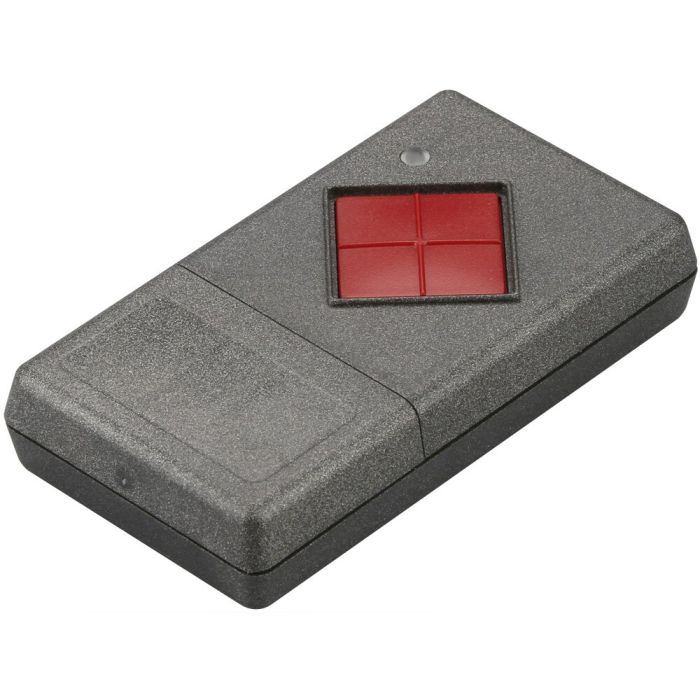

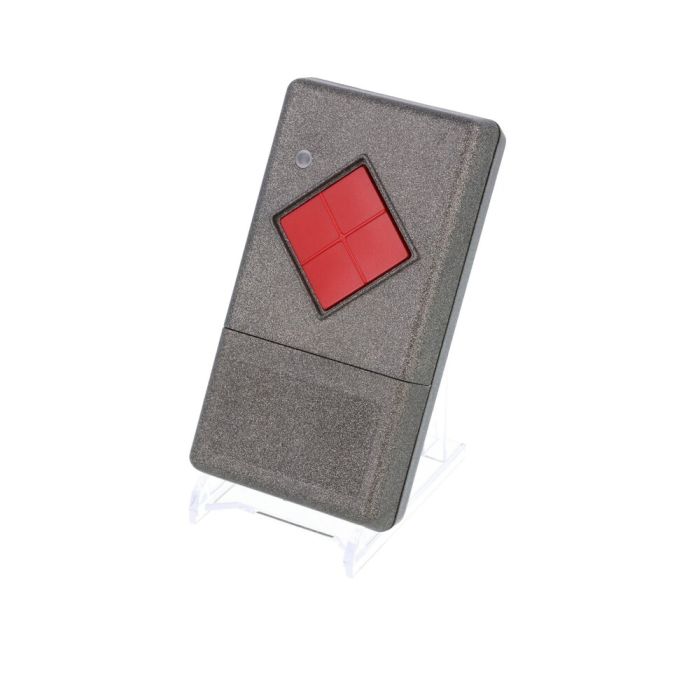

S20-868A1L00
Handheld transmitter | 1-channel | 868.3MHz | AM | linear-code | key colour: red
Availability
Part number
02007000
The S20-868A1L00 has 1 send button and works with 868.3MHz and AM modulation mode. The 10pin coding switch enables you to set 1,024 different security codes. For example, you can make subsequent transmitters a duplicate of the original transmitter by setting the same code. The receiver then requires no further memory space, so the number of transmitters is virtually unlimited. Equally, you can also set the same code for several transmitters in order to control the same receiver with all the transmitters.
- Compatible with our 868.3MHz AM radio receivers
- 1 send button
- 18Bit-Dickert-Linearcode
- Blue LED for battery and transmission control
- Exempt from registration and from charges! Approval according to ETS 300220!
| Dimensions | 110 x 60 x 26mm |
|---|---|
| Channels | 1 channel |
| Operat. temperature | -20°C to +60°C |
| Coding | linear |
| Frequency | 868,3MHz |
| Weight | 130g |
| Channels | 1 |
| Modulation mode | AM |
| Product type | Handheld transmitter |
| Operating range | up to 100m |
| Type | Description | Language | File extension | File size |
|---|
