OSR-868A1KL00
Outdoor transmitter | 1-channel | 868 or 433 MHz | AM | KeeLoq or linear code
Availability
Part number
02010601

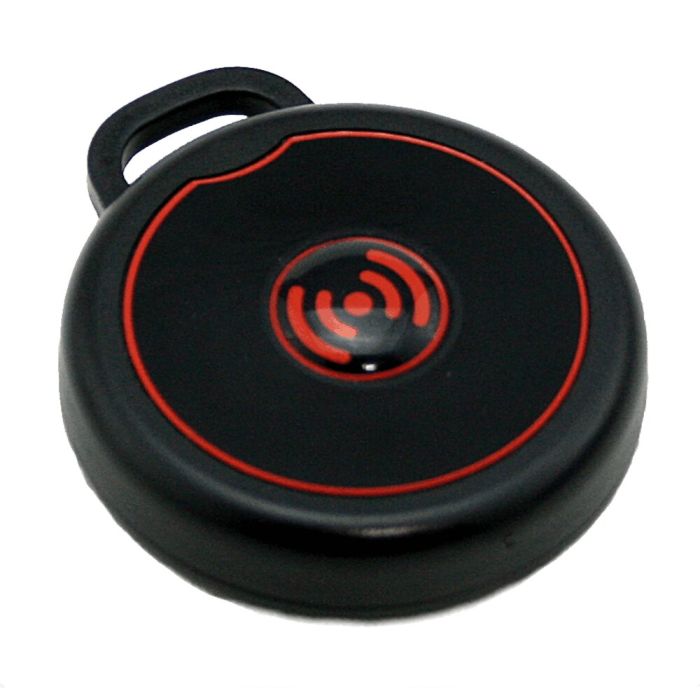

Outdoor transmitter - reliable in all kinds of weather
The robust and splash-proof OSR-868A1KL00 is particularly suitable for outdoor use in private and commercial sectors. But also works excellently indoors, for example as a home emergency call system for seniors. It has a rubberized transmit button that makes it easy to operate door systems even when wearing gloves. Whether as a key fob or with the belt clip provided as standard, it is quickly to hand. The OSR-H3D-00 holder for attaching to handlebars (e.g. motorcycle, bicycle, scooter, rollator, pallet truck, etc.) is available separately.
The outdoor transmitter can be switched: Linear or KeeLoq and 868,3 or 433,92MHz. The range is optimized for 868,3MHz.
- robust and splash-proofed outdoor transmitter
- 1 rubberized send button
- Easy to operate even when wearing gloves
- Also suitable for indoor use, e.g. as an emergency call transmitter for seniors
- Belt clip fitted as standard
- Holder for handlebars available separately
- Compatible to our 868,3MHz AM receiver (optional 433,92MHz AM)
- Codier switch to choose frequency / coding method
- Selectable coding: Dickert-KeeLoq coding (highly secure) or 18Bit-Dickert-Linear code (fix code)
- Exempt from registration and from charges! Approval according to ETS 300 220
| Dimensions | 47 x 40 x16mm |
|---|---|
| Channels | 1 channel |
| Operating voltage | 3V |
| Operat. temperature | -20°C to +60°C |
| Coding | selectable |
| Frequency | 868,3MHz |
| Weight | 12g |
| Channels | 1 |
| Modulation mode | AM |
| Product type | Handheld transmitter |
| Operating range | up to 100m |
| Protection class | IP67 |
