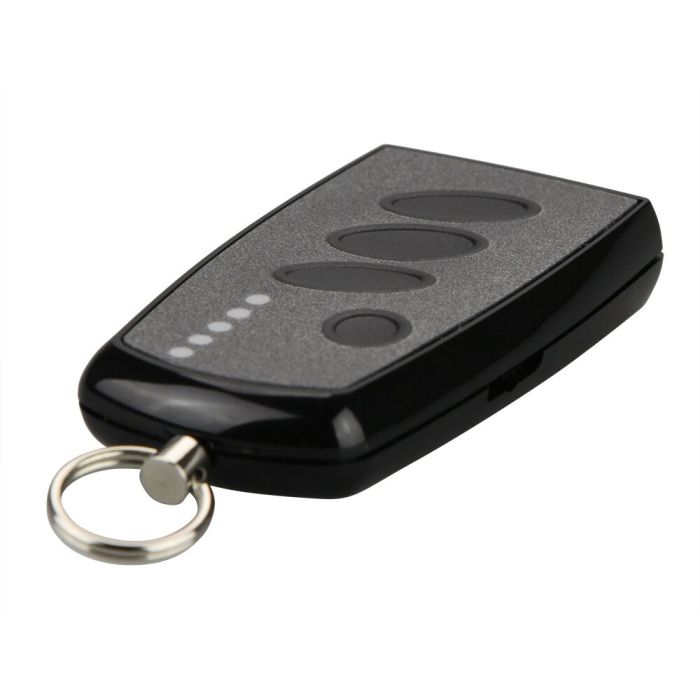

S8Q-868A15L00

The S8Q-433A15L00 has 3 send buttons and has three transmit keys and a group key to switch between the 5 groups. This results in 15 channels (3 x 5). In addition, you can select the "all groups" function. It works with 868.3MHz and AM modulation mode. The 10pin coding switch enables you to set 1,024 different security codes. For example, you can make subsequent transmitters a duplicate of the original transmitter by setting the same code. The receiver then requires no further memory space, so the number of transmitters is virtually unlimited.

An individual design of the front foil and a customer-specific coding are possible after consultation.

The Quick Learn function allows additional transmitters or transmitter keys to be taught-in in conjunction with Q-series receivers, without direct access to the receiver.
