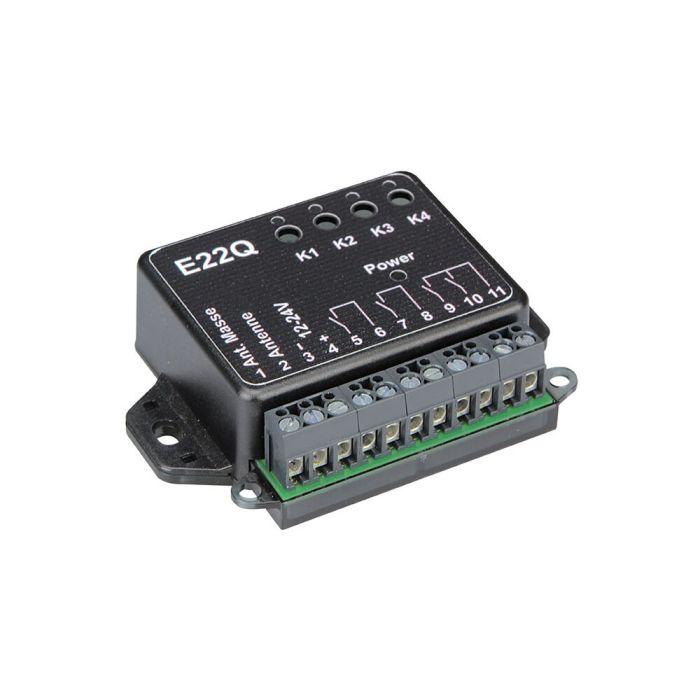

E22Q-868A400
Mini radio receiver | 4-channel| 868.3MHz | AM | 12-24V AC/DC | 4 potential-free relay outputs
Availability
Part number
02009900
The mini receiver E22Q-868A400 works with freqeuncy of 868,3MHz and manages on a supply voltage of 12-24V, and it is possible to control all four relays individually. Owing to its compact dimensions, the E22Q can also be installed in places where very little space is available. This gives rise to completely new applications, such as affording more comfort in motor caravans, controlling stair lifts, alarm systems or door intercom systems. Thanks to QuickLearn, further transmitters can be taught in subsequently, without opening the receiver. You safe the use of e.g. tools or a ladder.
The receiver can basically teach-in different coding methods. However, the transmitter taught in first determines the system to which the receiver then "locks in". This system must then be maintained, e.g. Keeloq code cannot be mixed with linear code on a receiver.
- 12-24V operating voltage
- Compact design
- 4-channel model
- Remote learning through "QuickLearn"
- External antenna connection
- Operating modes: Pulse, surge, targeted ON/OFF
| Dimensions | 87 x 62 x 27mm |
|---|---|
| Connected load | 0,5A |
| Channels | 4 channel |
| Output | potential free relay |
| Operating voltage | 12-24V AC/DC |
| Operat. temperature | -20°C to +50°C |
| Coding | self-learning |
| Frequency | 868,3MHz |
| Weight | 70g |
| Channels | 4 |
| Modulation mode | AM |
| Product type | Radio receiver |
| Protection class | IP20 |
| Standby | <0,5W |
