DZS25-868A1KL10

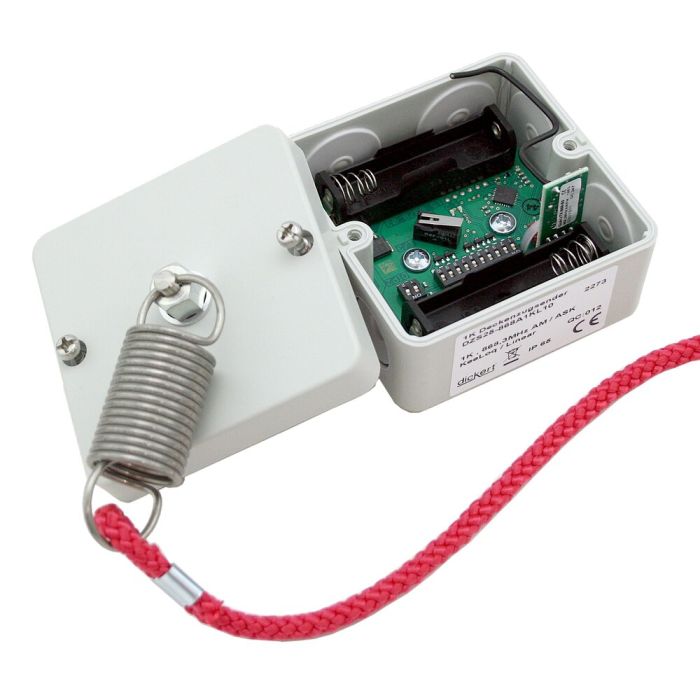

The DZS25-868A1KL00 wireless ceiling transmitter has a transmitter button that is triggered by a pull cord. It works with a frequency of 868.3MHz in modulation mode AM. The radio ceiling pull switch DZS25 is installed and operationally ready in a few minutes. There is no need to lay a cable. Furthermore, several DZS25s can be positioned at different locations. Ideally suited to controlling underground car park or industrial doors.

The coding method can be switched between 18-bit Dickert linear code and KeeloqCode using a 2-pole coding switch. When using the linear code, you have the option of setting 1,024 different security codes with the 10-pole coding switch. For example, you can make subsequent transmitters a duplicate of the original transmitter by setting the same code. The receiver then requires no further memory, so the number of transmitters is virtually unlimited. When using the highly secure KeeLoq procedure, a new code is calculated with each operation. In normal use, it takes over 20 years for a code to be repeated!
