S8Q-868A04L00

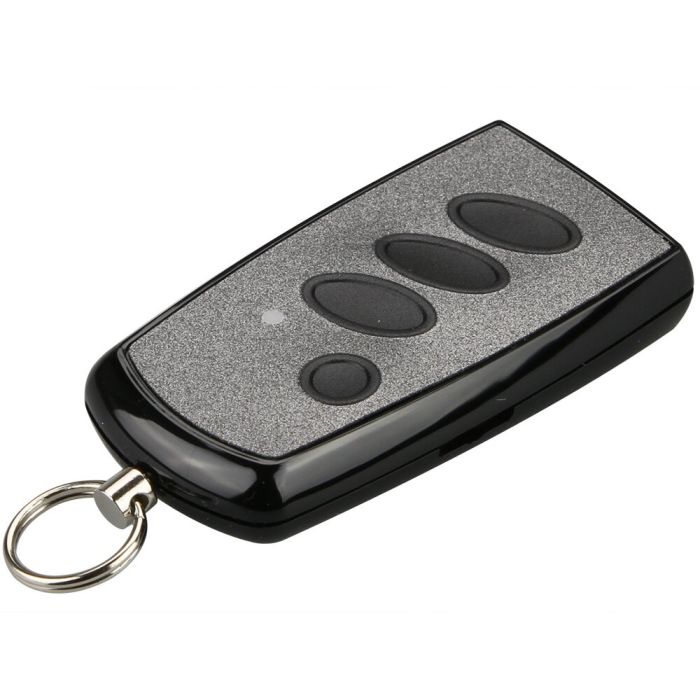

High-gloss handheld transmitter | 4-channel | 868.3MHz | AM | linear-code | incl. wall mount
Availability
Part number
02008400
The S8Q-868A04L00 has 4 send buttons and works with 868.3MHz and AM modulation mode. The 10pin coding switch enables you to set 1,024 different security codes. For example, you can make subsequent transmitters a duplicate of the original transmitter by setting the same code. The receiver then requires no further memory space, so the number of transmitters is virtually unlimited.
An individual design of the front foil and a customer-specific coding are possible after consultation.
The Quick Learn function allows additional transmitters or transmitter keys to be taught-in in conjunction with Q-series receivers, without direct access to the receiver.
- Compatible with our 868.3MHz AM radio receivers
- 4 send buttons
- 18Bit-Dickert-Linearcode
- QuickLearn distance learning
- Blue LED for battery and transmission control
- Exempt from registration and from charges! Approval according to ETS 300220!
| Dimensions | 64 x 35 x 11mm |
|---|---|
| Channels | 4 channel |
| Operat. temperature | -20°C to +60°C |
| Coding | linear |
| Frequency | 868,3MHz |
| Weight | 22g |
| Channels | 4 |
| Modulation mode | AM |
| Product type | Handheld transmitter |
| Operating range | up to 75m |
