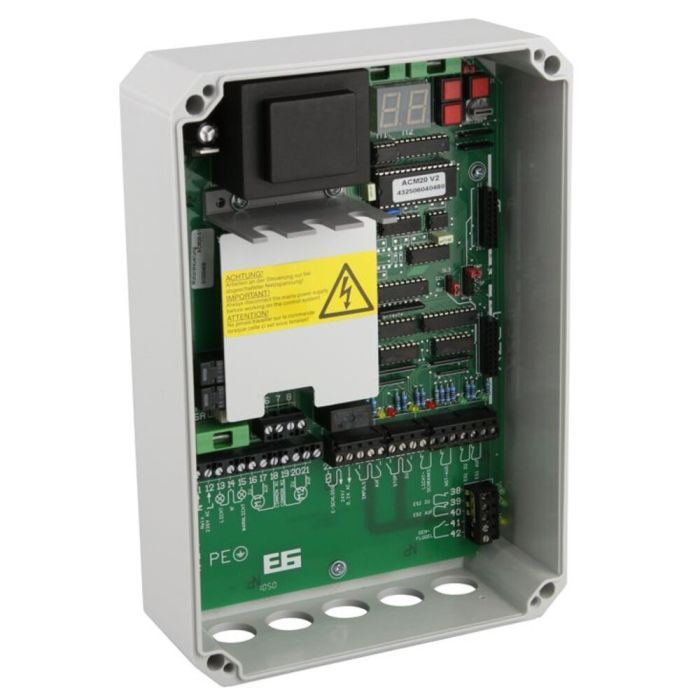

ACM20-03
Motor controller | 230V | 2-winged | with powerstop
Availability
Part number
00000403
The ACM20-03 is a 230 V AC motor controller that works with micro-controllers. The maximum configuration operates two motors with current-controlled force cut-off. Both a radio module and a 'complete receiver' can be used for radio operation. The controller can be used for swing and sliding gates as well as for rolling shutter gates, barriers etc.
The ACM20-03 is intended for replacement purposes only. For new installations we recommend the ACM230.
- 15 programmable menus
- Force cut-off via current measurement
- Operation without end switch possible
- Pulse/open, stop, close inputs
- End switch inputs (NC)
- Inactive leaf input for motor 2
- Light barrier input
- Red/green traffic light as status display, DSK20-51 plug-in card required
- Traffic light control for one-way streets, DSK20-50 plug-in card required
- 1K2+8K2 security strip evaluation, DSK02-50 plug-in card required
- Fraba OSE evaluation, OSE12-50 plug-in card required
- Without radio control
The control unit is intended for replacement purposes only.
| Dimensions | 255mm x 176mm x 80mm |
|---|---|
| Connected load | 500W |
| Wings | 2 wings |
| Output | 2M /light/warning light |
| Operating voltage | 230V AC |
| Operat. temperature | -20°C to +50°C |
| Weight | 1,6kg |
| Product type | Motor control |
| Protection class | IP54 |
