DSK02-50

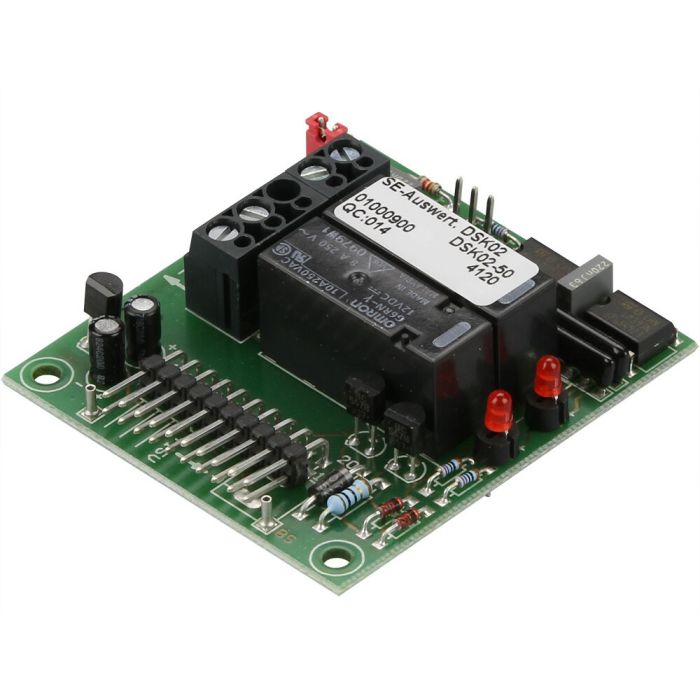

Plug-in card SE Evaluation | 20-pole pin strip
Availability
Part number
01000900
SE evaluation for motor controllers 5801/5806/ACM20/ACM400. Can be used with 1K2 & 8K2 electrical safety contact strips. Basic fault tolerance in accordance with regulation ZH1/494 of the Employers' Liability Insurance Association. Output switches when the safety strip is actuated (relay, potential-free, opening contact).
| Dimensions | 60 x 50 x 17mm |
|---|---|
| Output | potential free relay |
| Operating voltage | 12-18V DC |
| Operat. temperature | -20°C to +70°C |
| Weight | 40g |
| Product type | Accessories |
| Standby | 60mA |
