TR230-00

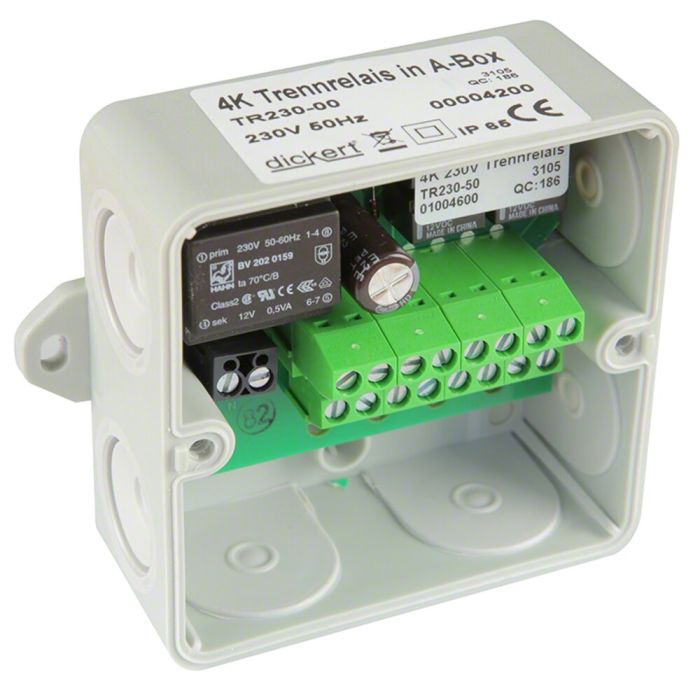

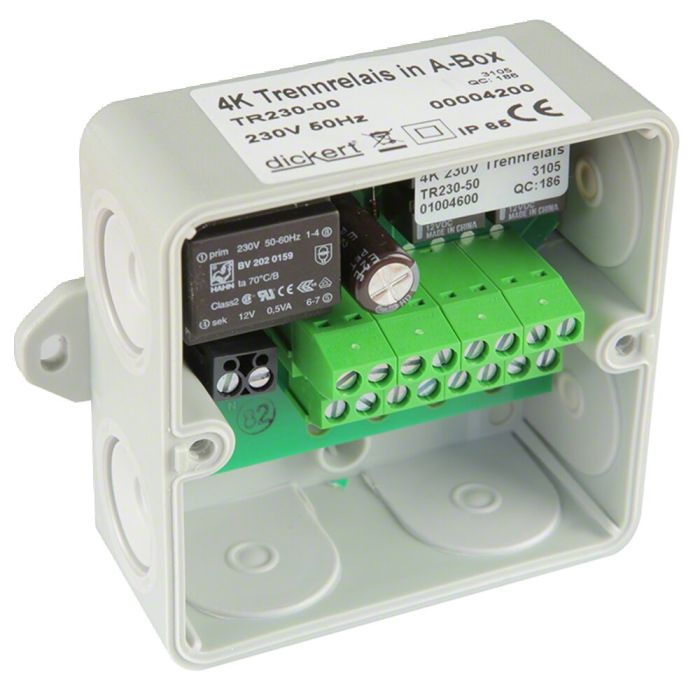

Isolating relay in A-Box | 230V AC | 4-channel | for line interference suppression
Availability
Part number
00004200
The 4 channel 230V/AC isolating relay TR230 serves for interference suppression of control lines /control inputs. By means of galvanic isolation via relays, the interference and resulting malfunctions caused by long cables, coupling from the mains, motor connection cables and EMC interference are prevented.
| Dimensions | 80 x 80 x 52mm |
|---|---|
| Connected load | 0,1A |
| Channels | 4 channel |
| Output | potential free relay |
| Operating voltage | 230V AC |
| Operat. temperature | -20°C to +50°C |
| Weight | 170g |
| Channels | 4 |
| Product type | Accessories |
| Protection class | IP65 |
| Standby | <2W |
