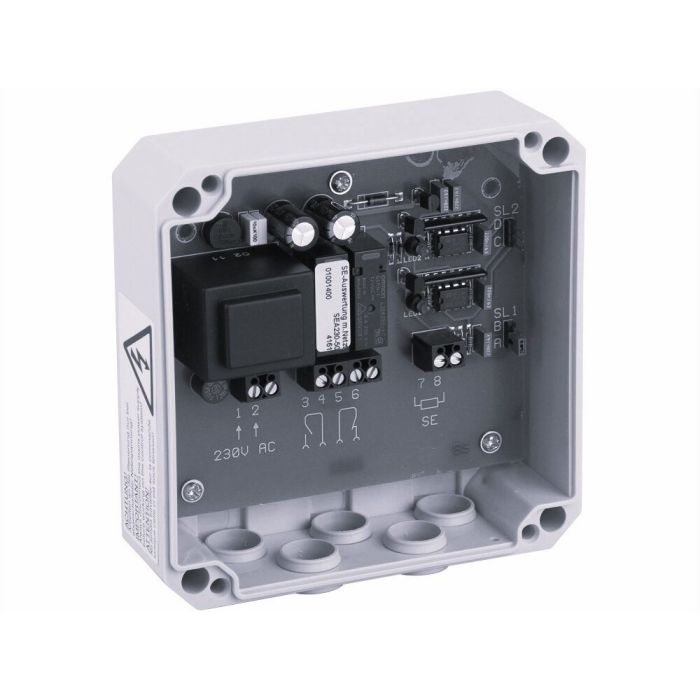

SEA230-00
SE Evaluation incl. power supply unit
Availability
Part number
00001400
SE evaluation for motor controllers 5801/5806/ACM20/ACM400. Can be used with 1K2 & 8K2 electrical safety contact strips. Basic fault tolerance in accordance with regulation ZH1/494 of the Employers' Liability Insurance Association. Output switches when the safety strip is actuated (relay, potential-free, opening contact).
| Dimensions | 125 x 125 x 52mm |
|---|---|
| Connected load | 4A |
| Channels | 2 channel |
| Output | potential free relay |
| Operating voltage | 230V AC |
| Operat. temperature | -20°C to +70°C |
| Weight | 0,5kg |
| Channels | 2 |
| Product type | Accessories |
| Protection class | IP54 |
| Standby | 2VA |
