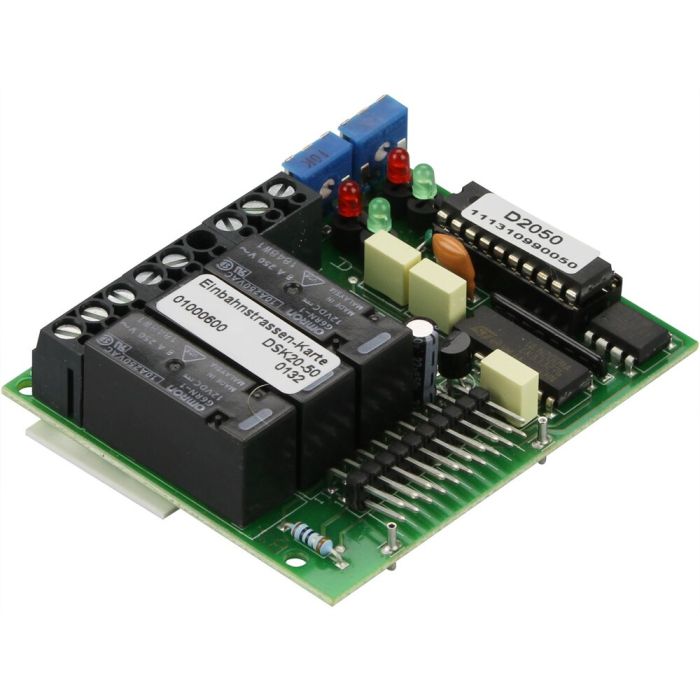

DSK20-50
One-way street plug-in card
Availability
Part number
01000600
One-way street plug-in card, suitable for ACM20/ACM400, for switching two red/green traffic lights (24 V or 230 V max. 4 A) via potential-free relay contacts. Can be used, for example, for longer underground car parks or drives. Green request by means of potential-free buttons. The green phase time and clearance time can be set separately.
| Dimensions | 60 x 70 x 17mm |
|---|---|
| Operating voltage | 15V DC |
| Operat. temperature | -20°C to +50°C |
| Weight | 60g |
| Product type | Accessories |
| Standby | 10mA |
