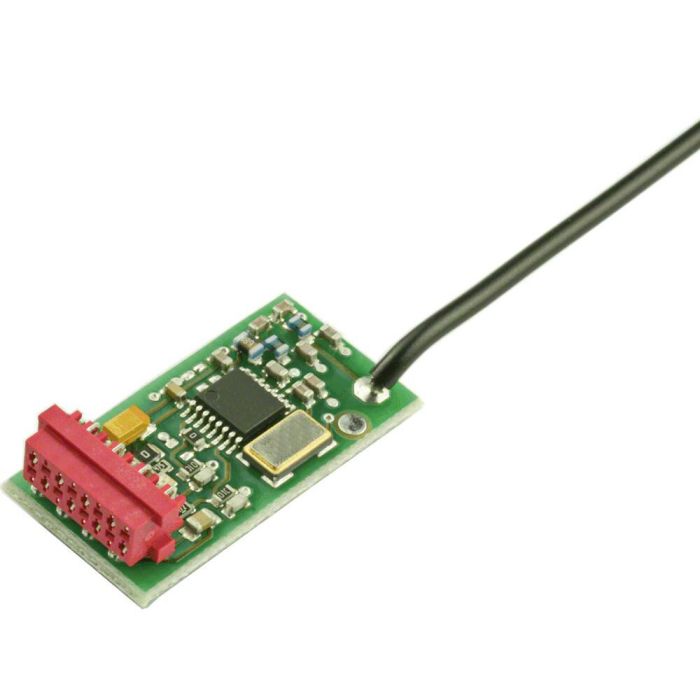

QuickTX-868-50
Radio transmitter module for gate status display
Availability
Part number
03011311
With the QuickTX-868-50 radio module, the statuses of the RTS20Q can be transmitted by radio, e.g. to a central control unit in the living area and/or to a radio receiver.
The following statuses of the RTS20Q are transmitted by radio (one status can be selected in the menu):
- OPEN end position
- CLOSED end position
- OPEN run
- CLOSED run
- Standing on track
- Error
- Obstacle
If the QuickTX radio module is in use, the radio memory of the RTS20Q is expanded from 30 to 60 memory locations.
| Operating voltage | 5V DC |
|---|---|
| Coding | determ. by the basic device |
| Frequency | 868,3MHz |
| Modulation mode | AM |
| Product type | Accessories |
| Operating range | up to 50m |
