MAHS27-04

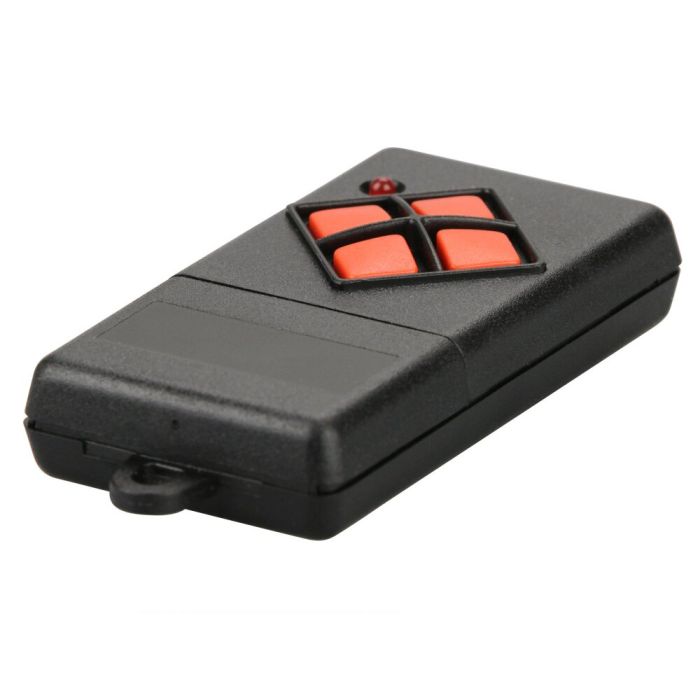

Mini handheld transmitter | 4-channel | 27.015MHz | AM | key colour: red
Availability
Part number
02006001
The MAHS27-04 mini handheld transmitter has four send buttons and works with 27.015MHz in AM modulation with 4,096 coding possibilities. The personal coding is freely configurable by the user with a 10-pin coding switch.
It is possible to have your company logo imprinted and for the keys to have special colours, by arrangement.
- LED for transmission control
- Compatible with our 27.015 MHz AM radio receivers
- Exempt from registration and from charges! Approval according to ETS 300220
- 12-Bit-Dickert linear code
- 4,096 coding possibilities
| Dimensions | 82 x 39 x 17mm |
|---|---|
| Channels | 4 channel |
| Operat. temperature | -20°C to +60°C |
| Coding | linear |
| Frequency | 27,015MHz |
| Weight | 40g |
| Channels | 4 |
| Modulation mode | AM |
| Product type | Handheld transmitter |
| Operating range | up to 75m |
