PICO-868A04K00

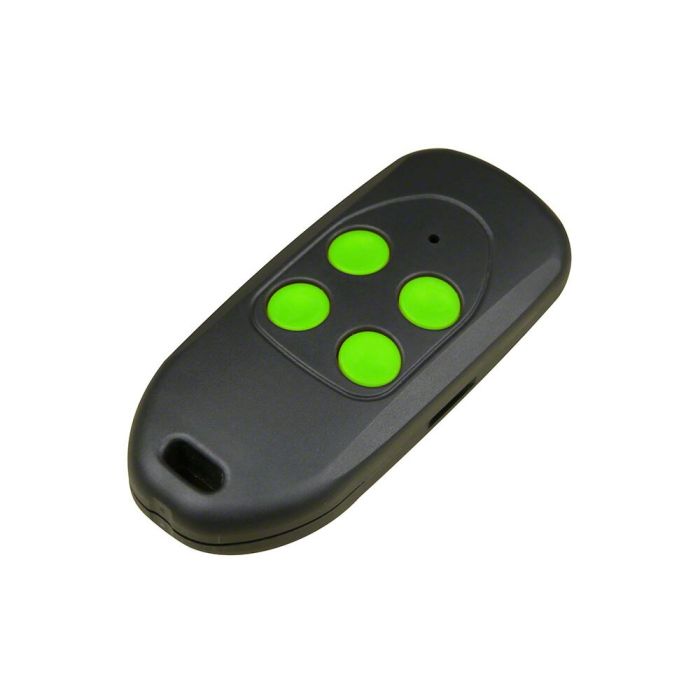

Handheld transmitter Bernal PICO | 4-channel | 868.5 MHz | AM | KeeLoq | key colour: green
Availability
Part number
02010001
Replacement / Successor for transmitter with Bernal-KeeloqCode
The PICO-86804K00 has 4 send buttons and works with the frequency of 868.5MHz in AM modulation mode. It can be used as a replacement transmitter or as the extension of existing plants. Also compatible with any Bernal Pico 1, Pico 2, Pico 3 Transmitters. A 2 channel transmitter can be replaced by a 4 channel transmitter.
With the highly secure KeeLoq process, a new code is calculated with every operation.
The transmitter must be taught-in once electronically on the radio receiver (each button to have effect).
- LED for battery / transmitter control
- KeeLoq coding - Bernal manufacturer code
- The 4 channel hand transmitter can be used as a substitute for a 2 channel transmitter
- Compatible Bernal PICO I, II, III with 868.5 MHz AM radio receivers and controllers
| Dimensions | 70 x 30 x 13mm |
|---|---|
| Channels | 4 channel |
| Operat. temperature | -20°C to +60°C |
| Coding | KeeLoq |
| Frequency | 868,5MHz |
| Weight | 30g |
| Channels | 4 |
| Modulation mode | AM |
| Product type | Handheld transmitter |
| Operating range | up to 75m |
