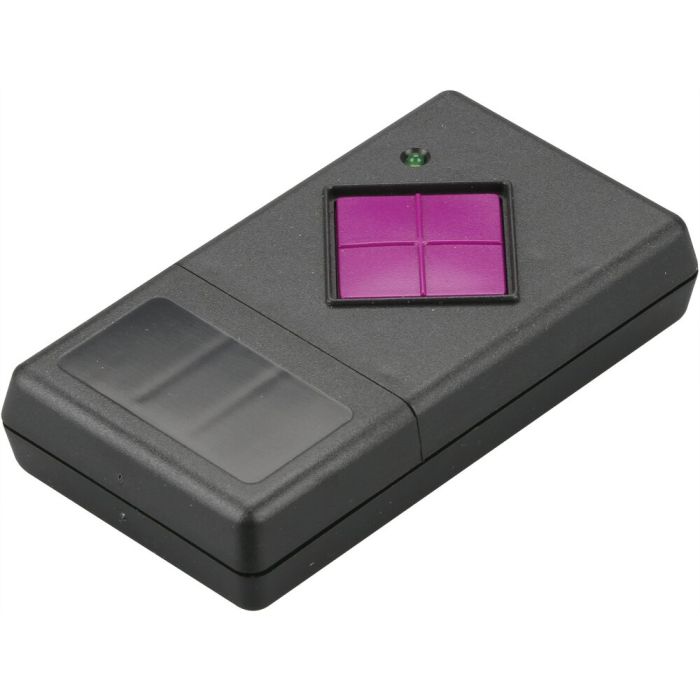

FHS20-01
Standard handheld transmitter| 1-channel | 40.685MHz | FM| key colour: pink
Availability
Part number
02003410
The FHS 20-02 handheld transmitter has one send button and works with 18-Bit linear code. A permanent, consecutive code is factory-set. The transmitter must be taught-in once electronically at the radio receiver. It is not possible to change the code on the transmitter. A change of any number of transmitters with the same code can be supplied for 'large-scale projects'. It is possible to have your company logo imprinted and for the keys to have special colours, by arrangement.
- LED for battery and transmission control
- 4.7 million coding possibilities permanently set ex-factory
- Compatible with our FM radio receivers with 40.685MHz
- Exempt from registration and from charges! Europe-wide approval according to ETS 300220
| Dimensions | 110 x 60 x 26mm |
|---|---|
| Channels | 1 channel |
| Operat. temperature | -20°C to +60°C |
| Coding | linear |
| Frequency | 40,685MHz |
| Weight | 130g |
| Channels | 1 |
| Modulation mode | FM |
| Product type | Handheld transmitter |
| Operating range | up to 100m |
