IAMS40-00
Industrial handheld transmitter | 30-channel | 40.685MHz | AM| 10pol. rotary switch | 12Bit linear code
Availability
Part number
02005400

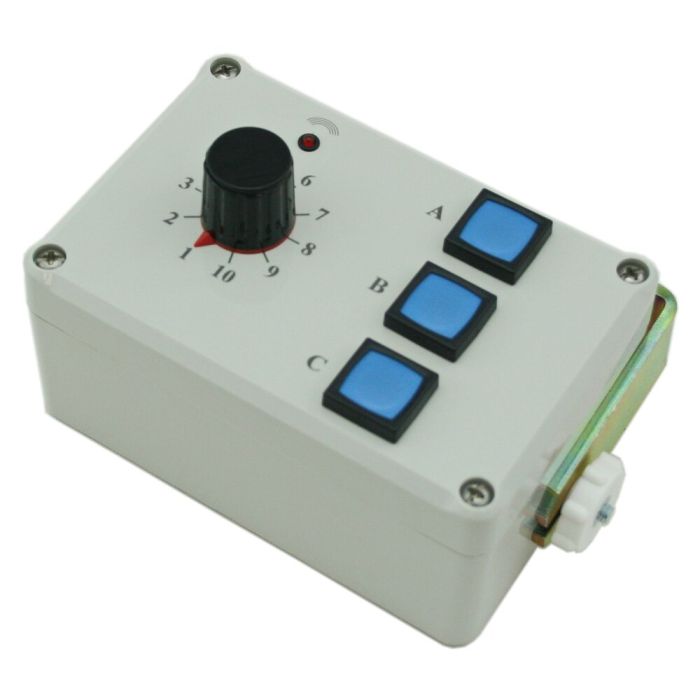

The IAMS40-00 has three send buttons and a rotary switch with 10 positions to control thirty channels. The industrial transmitter works with 40.685MHz in AM technique and allows you, for example, to operate up to 10 gates using the 'OPEN - STOP - CLOSED' functions, or a maximum of 30 gates in pulse mode.
The transmitter has a 9-volt battery of type 6F22 as the voltage supply, which means that you can use the supplied mounting bracket to install the transmitter in places where no electricity connection is available.
- 30-channel 40.685 MHz AM industrial transmitter
- 6-pin coding switch for personal coding, LinearCode
- Compatible with our AM radio receivers with 40.685MHz
- LED for battery and transmission control
- Exempt from registration and from charges!
| Dimensions | 120 x 80 x 77mm |
|---|---|
| Channels | More than 4 |
| Operat. temperature | -20°C to +60°C |
| Coding | linear |
| Frequency | 40,685MHz |
| Weight | 450g |
| Channels | more than 4 |
| Modulation mode | AM |
| Product type | Handheld transmitter |
| Operating range | up to 50m |
| Protection class | IP54 |
