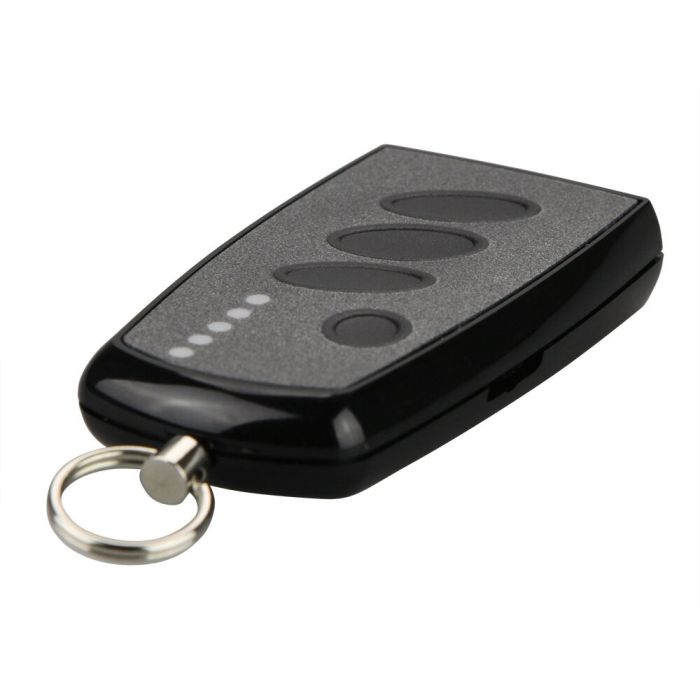

S8Q-433A15K00
High-gloss handheld transmitter | 15-channel | 433.92 MHz | AM | KeeLoq | incl. wall mount
Availability
Part number
02008700
The S8Q-433A15K00 has 3 send buttons and has three transmit keys and a group key to switch between the 5 groups. This results in 15 channels (3 x 5). In addition, you can select the "all groups" function. It works with 433.92MHz and AM modulation mode. Each time it is actuated, a new code is calculated.
The transmitter must be taught-in once electronically on the radio receiver (each button to have effect).
An individual design of the front foil and a customer-specific coding are possible after consultation.
The Quick Learn function allows additional transmitters or transmitter keys to be taught-in in conjunction with Q-series receivers, without direct access to the receiver.
- Compatible with our 433.92MHz AM radio receivers
- 3 send buttons / 1 group button
- KeeLoq coding (Dickert Manufacturercode)
- QuickLearn distance learning
- Blue LED for battery and transmission control
- Exempt from registration and from charges! Approval according to ETS 300220
| Dimensions | 64 x 35 x 11mm |
|---|---|
| Channels | More than 4 |
| Operat. temperature | -20°C to +60°C |
| Coding | KeeLoq |
| Frequency | 433,92MHz |
| Weight | 22g |
| Channels | more than 4 |
| Modulation mode | AM |
| Product type | Handheld transmitter |
| Operating range | up to 75m |
