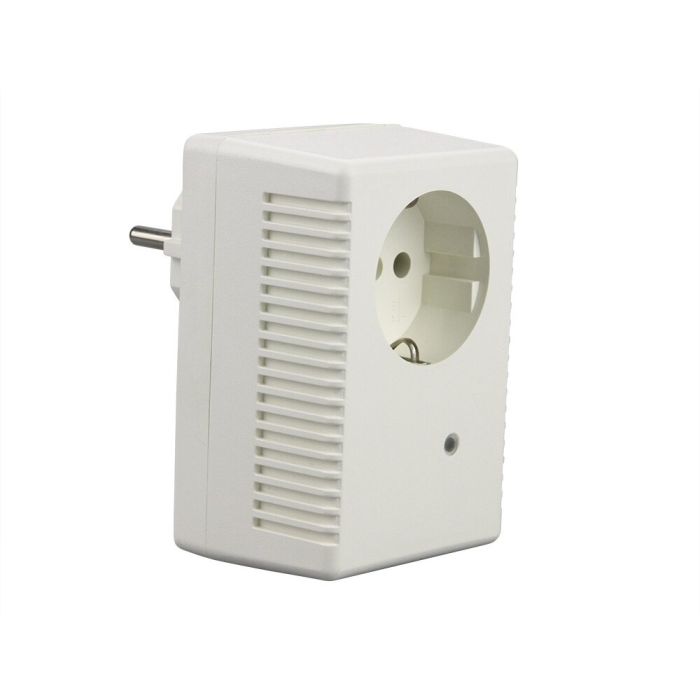

E19-433A1S00
Radio socket | 1-channel | 433.92MHz | AM | 230V AC
Availability
Part number
02007700
Switch your devices off simply and conveniently from your armchair! The E19 radio socket makes that easy.
Just insert into the socket, teach the transmitter in, plug the device that you want to switch into the E19, done. No matter whether coffee machine, lamps, fountain ... virtually everything is possible. The built-in switch-off timer makes the radio socket eminently suitable for controlling a service water circulation pump. You switch the pump on via radio only when you really need hot water. That saves electricity, the storage tank is cooled down less and you save cash!
The receiver can basically teach-in different coding methods. However, the transmitter taught in first determines the system to which the receiver then "locks in". This system must then be maintained, e.g. KeeLoq code cannot be mixed with linear code on a receiver.
- 1-channel radio socket 230V, in 433.92MHz
- Operating modes: pulse, surge, targeted ON/OFF
- Memory: max. 13 codes (linearcode with same switch position: unlimited)
- Switch-off timer, configurable from around 1 second to around 18 hours
- Relay output, 230V/AC, max. 1000W ohmic load
| Dimensions | 96 x 64 x 49mm |
|---|---|
| Connected load | 1000W |
| Channels | 1 channel |
| Output | SchuKo socket |
| Operating voltage | 230V AC |
| Operat. temperature | -20°C to +35°C |
| Coding | self-learning |
| Frequency | 433,92MHz |
| Weight | 155g |
| Channels | 1 |
| Modulation mode | AM |
| Product type | Radio receiver |
| Protection class | IP20 |
| Standby | <0,5W |
