S5U-433A2K00
Flush-mounted handheld transmitter | 2-channel | 433.92MHz | KeeLoq | key colour: blue
Availability
Part number
02007403

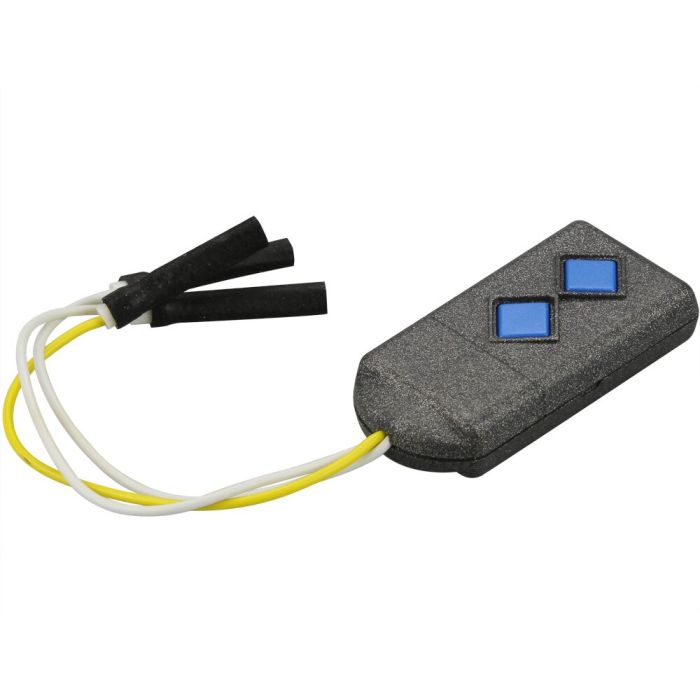

The flush-mounted transmitter is a "special model" of our S5 micro handheld transmitter. Its size enables it to be installed in a flush-mounted socket, behind a button. This gives you a switch option without the radio transmitter being "visible".
The S5U-433A2K00 has two transmission channels. The keys are led out by wire (stranded wire with ferrule). It works with 433.92MHz and AM modulation mode. With the highly secure KeeLoq method a new code is calculated each time it is actuated.
- Compact design, fits behind a normal wall switch
- Pre-wired
- KeeLoq coding (Dickert Manufacturercode)
- Compatible with our 433.92MHz AM radio receivers
- Exempt from registration and from charges! Approval according to ETS 300 220
| Dimensions | 50 x 24 x 12mm |
|---|---|
| Channels | 2 channel |
| Operat. temperature | -20°C to +60°C |
| Coding | KeeLoq |
| Frequency | 433,92MHz |
| Weight | 12g |
| Channels | 2 |
| Modulation mode | AM |
| Product type | Handheld transmitter |
| Operating range | up to 50m |
