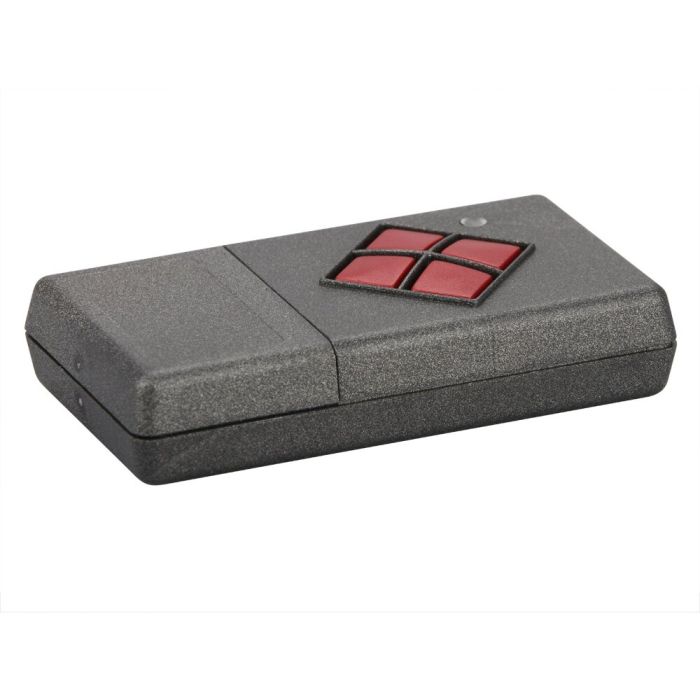

S20-433A4L00
Handheld transmitter | 4-channel | 433.92MHz | AM | linear-code | key colour: red
Availability
Part number
02007003
The S20-433A4L00 has 4 send buttons and works with 433.92MHz and AM modulation mode. The 10pin coding switch enables you to set 1,024 different security codes. For example, you can make subsequent transmitters a duplicate of the original transmitter by setting the same code. The receiver then requires no further memory space, so the number of transmitters is virtually unlimited. Equally, you can also set the same code for several transmitters in order to control the same receiver with all the transmitters.
- Compatible with our 433.92MHz AM radio receivers
- 4 send buttons
- 18Bit-Dickert-Linearcode
- Blue LED for battery and transmission control
- Exempt from registration and from charges! Approval according to ETS 300220!
| Dimensions | 110 x 60 x 26mm |
|---|---|
| Channels | 4 channel |
| Operat. temperature | -20°C to +60°C |
| Coding | linear |
| Frequency | 433,92MHz |
| Weight | 130g |
| Channels | 4 |
| Modulation mode | AM |
| Product type | Handheld transmitter |
| Operating range | up to 100m |
