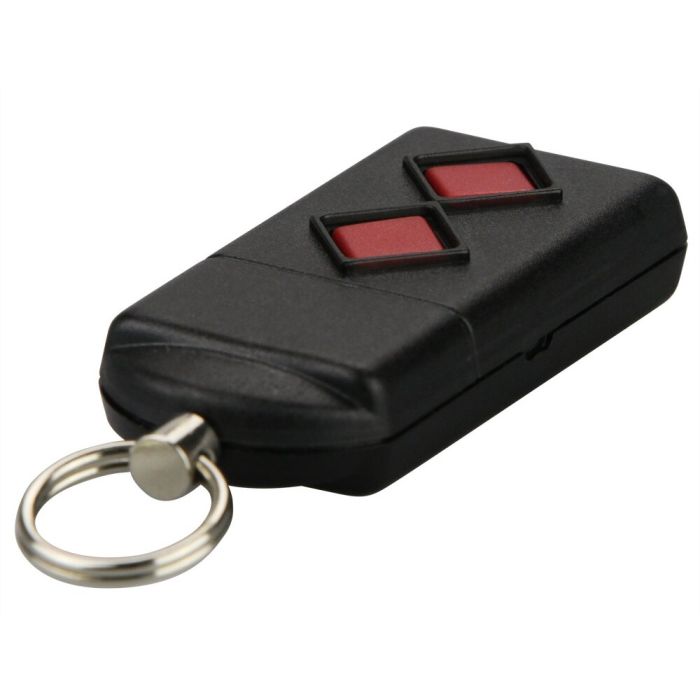

S5Q-433A2L00
Micro handheld transmitter | 2-channel | 433.92MHz | AM | linear-code | key colour: red
Availability
Part number
02009500
The S5Q-433A2L00 has 2 send buttons and works with 433.92MHz and AM modulation mode. The transmitter uses one of 262,000 possible codes programmed continuously at the factory. This is an 18-bit linear code that cannot be changed.
The transmitter must be taught-in once electronically on the radio receiver (each button to have effect).
- Compatible with our 433.92MHz AM radio receivers
- 2 send buttons
- 18Bit-Dickert linear code
- QuickLearn - simplified remote learning function
- Micro design with key ring
- Blue LED for battery and transmission control
- Exempt from registration and from charges! Approval according to ETS 300220
| Dimensions | 50 x 24 x 12mm |
|---|---|
| Channels | 2 channel |
| Operat. temperature | -20°C to +60°C |
| Coding | linear |
| Frequency | 433,92MHz |
| Weight | 12g |
| Channels | 2 |
| Modulation mode | AM |
| Product type | Handheld transmitter |
| Operating range | up to 50m |
