IS-433A30-00
Industrial handheld transmitter | 30-channel | 433.92MHz | AM | linear-code | key colour: blue
Availability
Part number
02007100

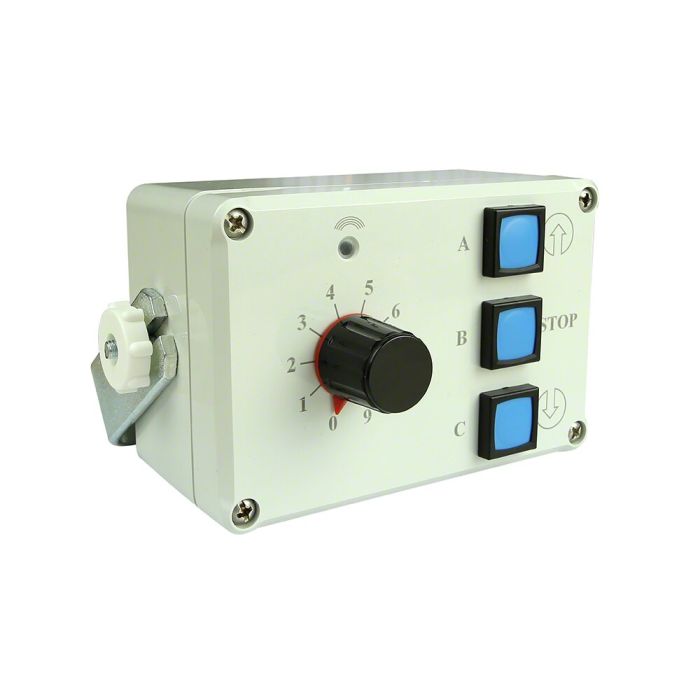

The IS-433A30-00 has 3 send buttons and works with 433.92MHz and AM modulation mode. The industrial transmitter allows you, for example, to operate up to 10 gates using the 'OPEN - STOP - CLOSED' functions, or a maximum of 30 gates in pulse mode within one receiving area.
The transmitter has a 9-volt battery of type 6F22 as the voltage supply, which means that you can use the supplied mounting bracket to install the transmitter in places where no electricity connection is available.
- 30-channel 433.92MHz AM industrial transmitter (print 0-9)
- 10-pin coding switch for personal coding (LinearCode)
- Compatible with our 433.92MHz AM radio receivers
- LED for battery and transmission control
- Exempt from registration and from charges! Approval according to ETS 300220
| Dimensions | 120 x 80 x 77mm |
|---|---|
| Channels | More than 4 |
| Operat. temperature | -20°C to +60°C |
| Coding | linear |
| Frequency | 433,92MHz |
| Weight | 450g |
| Channels | more than 4 |
| Modulation mode | AM |
| Product type | Handheld transmitter |
| Operating range | up to 50m |
| Protection class | IP54 |
