E28Q-433A200
Radio receiver | 2 channel | 433.92MHz | AM | 2x5p Molex socket RM3,96 | suitable for FEIG Door Controllers
Availability
Part number
03011201

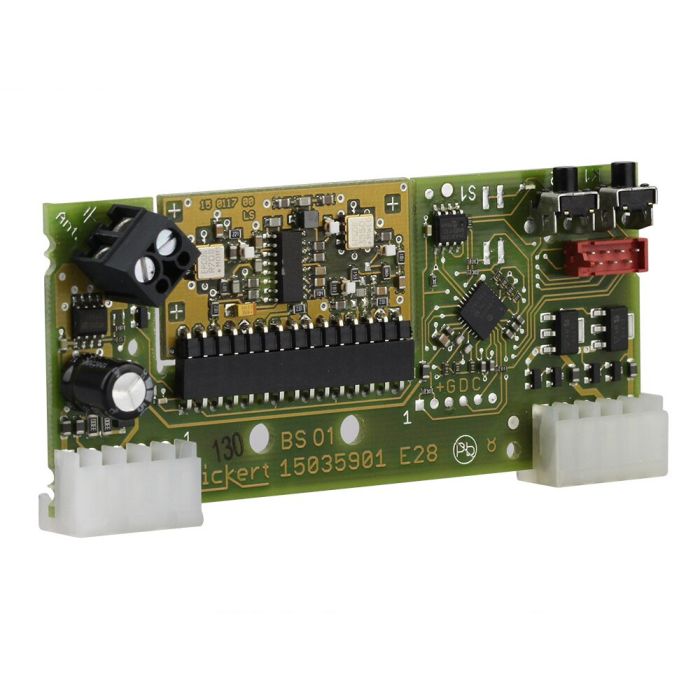

The E28Q plug-in receiver is a 2-channel radio receiver with open drain outputs, designed as an open circuit board. The typical application is the control of the motor controls of Feig Electronic (e.g. TRICON and RELCON controllers) via handheld transmitter. Compatible are our 433.92MHz AM transmitters. Q series handheld transmitters can be taught-in remotely (QuickLearn function). A maximum of 100 transmitter keys can be taught in to the receiver, which has a connection for a cube/external antenna. Transmitter codes and settings can be backed up using QuickLog25.
| Dimensions | 100 x 45 x 17mm |
|---|---|
| Connected load | 0,1A |
| Channels | 2 channel |
| Output | open drain |
| Operating voltage | 10-35V DC |
| Operat. temperature | -20°C to +50°C |
| Coding | self-learning |
| Frequency | 433,92MHz |
| Weight | 50g |
| Channels | 2 |
| Modulation mode | AM |
| Product type | Radio receiver |
| Standby | <0,5W |
