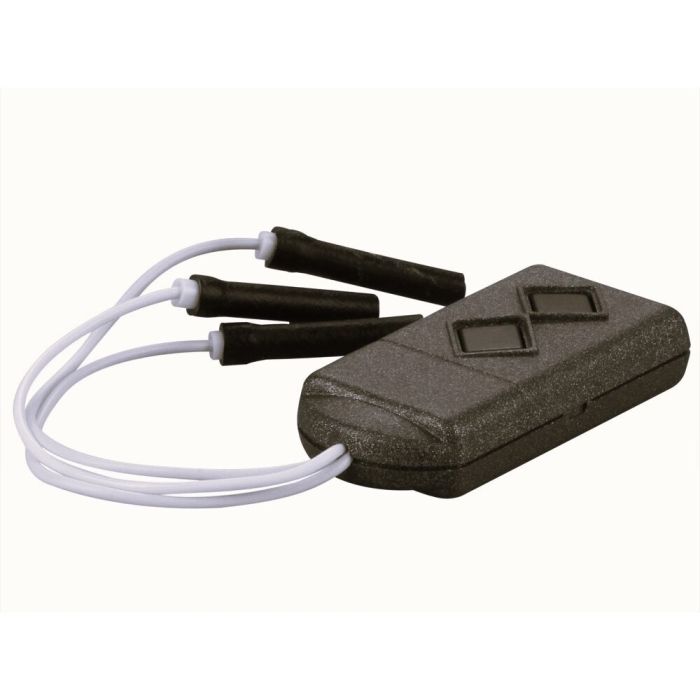

S5U-433A2L00
Flush-mounted handheld transmitter | 2-channel | 433.92MHz | AM | linear-code | key clour: red
Availability
Part number
02007303
The flush-mounted transmitter is a "special model" of our S5 micro handheld transmitter. Its size enables it to be installed in a flush-mounted socket, behind a button. This gives you a switch option without the radio transmitter being "visible".
The S5U-433A2L00 has two transmission channels. The keys are led out by wire (stranded wire with ferrule). It works with 433.92MHz and AM modulation mode.The transmitter uses one of 262,000 possible codes programmed continuously at the factory; the 18-bit linear code cannot be changed.
- Compact design, fits behind a normal wall switch
- Pre-wired
- 18-Bit Dickert linear code
- Compatible with our 433.92MHz AM radio receivers
- Exempt from registration and from charges! Approval according to ETS 300 220
| Dimensions | 50 x 24 x 12mm |
|---|---|
| Channels | 2 channel |
| Operat. temperature | -20°C to +60°C |
| Coding | linear |
| Frequency | 433,92MHz |
| Weight | 12g |
| Channels | 2 |
| Modulation mode | AM |
| Product type | Handheld transmitter |
| Operating range | up to 50m |
