DCM31-50
Motor controller | 24V DC | ES (opener) 0V | without housing | without transformer 300VA | without radio module
Availability
Part number
01003102

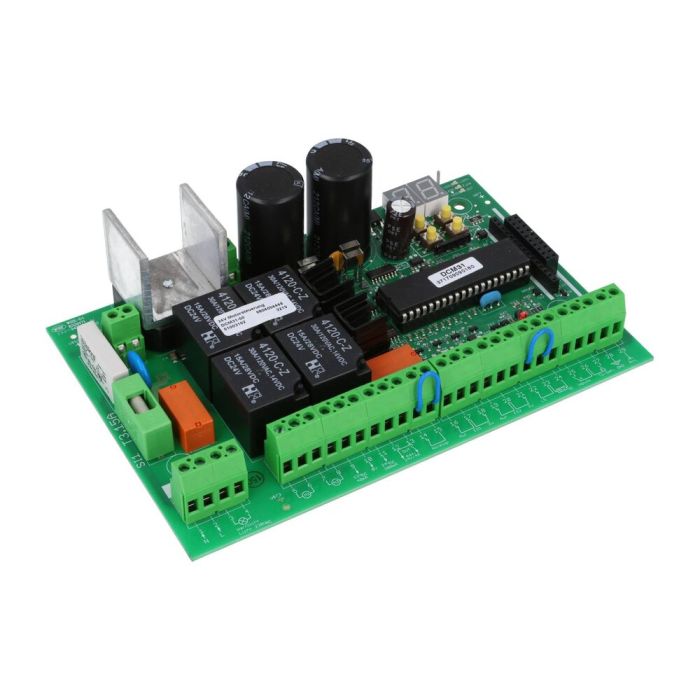

The DCM31-50 control board is intended as a replacement for an existing housing. This requires the connection of the long-life transformer from the previous motor control.
The DCM31 is a 24 V/DC motor controller with micro-controller and gentle start-up and stop. The controller can be used for 1-winged or 2-winged swing, tilt, up-and-over or sliding gates. The end position clamping can be done via internal / external limit switches or via force shut-off. A radio module can be used for radio operation.
- 24 programmable menus, for functions, see the operating instructions
- Integrated radio receiver for plug-in radio module in various frequencies
- Power shut-off via power supply value adjustable via current measurement
- Security strip evaluation 8K2, OSE or switch strip
- Light barrier connection functions can be selected
- Light/warning light output function can be selected
- Automatic closing configurable up to max. 30 minutes
- Inactive leaf / part opening function
- Without radio module, without transformer, without housing!
The control unit is intended for replacement purposes only.
| Dimensions | 255mm x 176mm x 80mm |
|---|---|
| Connected load | 11A |
| Wings | 2 wings |
| Output | 2M /light/warning light |
| Operating voltage | 24V AC |
| Operat. temperature | -20°C to +50°C |
| Power-on time | 25% |
| Weight | 0,5kg |
| Product type | Motor control |
| Protection class | IP54 |
| Standby | 3W |
